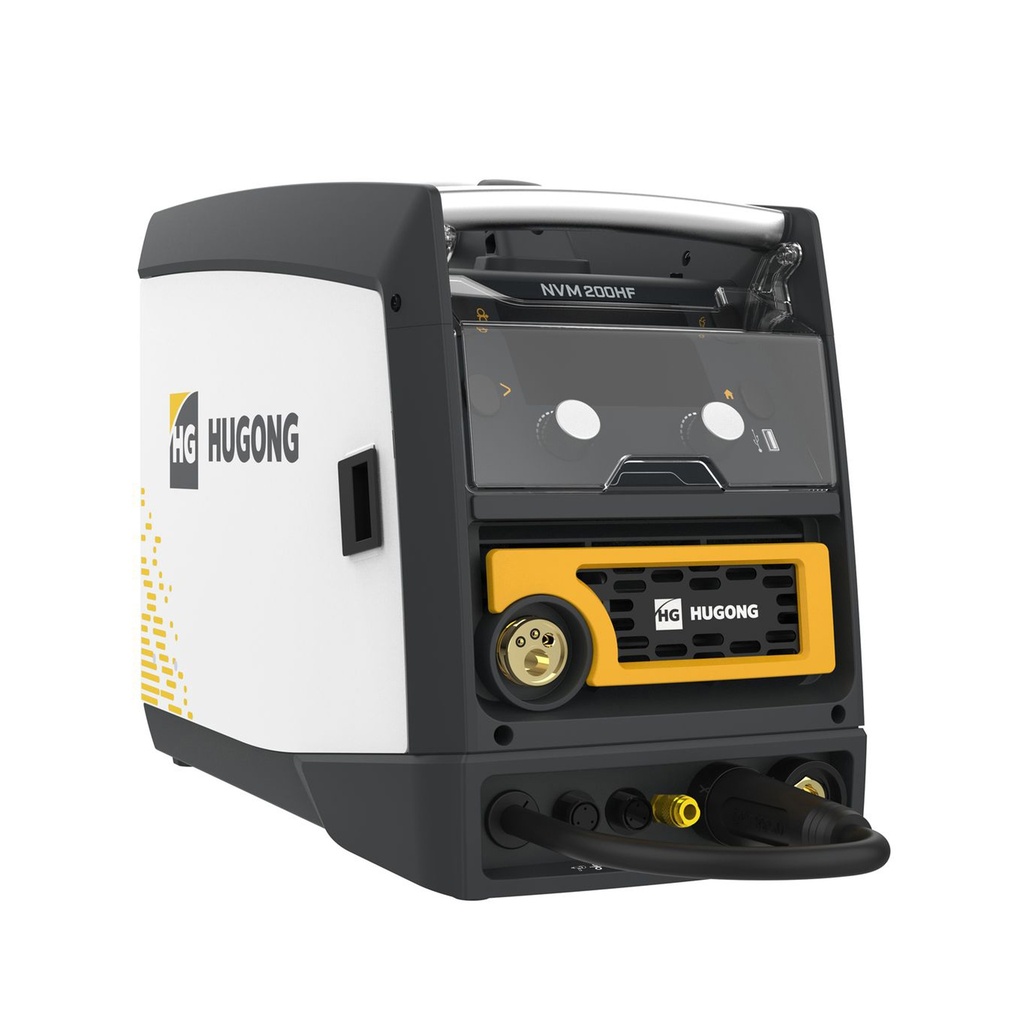

The Hugong NVM200HF is a powerful and versatile 4-in-1 inverter welder from Hugong’s innovative NOVI series. This machine combines robust MIG/MAG performance with high-frequency TIG (HF-TIG) welding capabilities, and also supports Lift-TIG and MMA (stick) welding. It’s an all-in-one solution for welders who demand flexibility, precision, and reliability.
Equipped with Hugong’s HDVision interface and intelligent synergic control, the NVM200HF automatically adjusts welding parameters based on material, wire, and gas selection. One of its standout features is its >99% HF-TIG arc ignition success rate, ensuring smooth, immediate arc starts - even on thin materials or during precision work. The built-in PFC module supports a wide input voltage range from 95V to 275V, making the machine highly stable even on long extension cables or under variable power conditions.
Key feature:
- 4-in-1 welding process: MIG, HF-TIG, Lift-TIG, and MMA
Powerful MIG capabilities combined with high-precision HF-TIG ignition—all in one compact unit.
- 99% arc ignition success in HF-TIG mode
Reliable, stable arc starts every time—ideal for delicate or detailed TIG welding.
- Synergic control with HDVision interface
Automatic parameter adjustment with a clear digital interface for intuitive control.
- PFC technology (95–275V) for voltage stability and energy efficiency
Delivers consistent performance even under fluctuating or low-voltage conditions.
- Shock-resistant ABS housing
Durable and impact-resistant—built for professional use on-site or in the workshop.
- 5-year warranty upon registration
Long-term support and proven Hugong reliability.
Supplied with:
- MIG torch EP1500 – 3 meters
- Ground clamp with 3-meter cable (16 mm², 35 – 70 quick connector)
- 4-meter gas hose with NW5 connector
- Drive rollers: 0.8 – 1.0 mm (solid) – 2 pcs.
- Contact tips: 0.6 mm, 0.9 mm, 1.0 mm
- 10 – 16 hose clamp
Specifications
| Frequency | 50/60 Hz |
| Voltage | 230V - 1 Phase |
| No load voltage | 69V |
| Rated input current | 36A |
| Duty cycle @20C | 40% - 200A |
| Duty cycle @40C | 20% - 200A |
| Weldable welding wire | 0.8 / 1.0 mm |
| Welding current range | MIG 40 - 200A / MMA 10 - 180A / TIG 10 - 180A |
| Product Dimensions: | |
|---|---|
| Product Length | 532 mm |
| Product Width | 245 mm |
| Product Height | 382 mm |
| Product Weight | 15.2 Kg |
| Package Dimensions: | |
| Package Length | 555 mm |
| Package Width | 305 mm |
| Package Height | 420 mm |
| Package Weight | 17.80 Kg |
