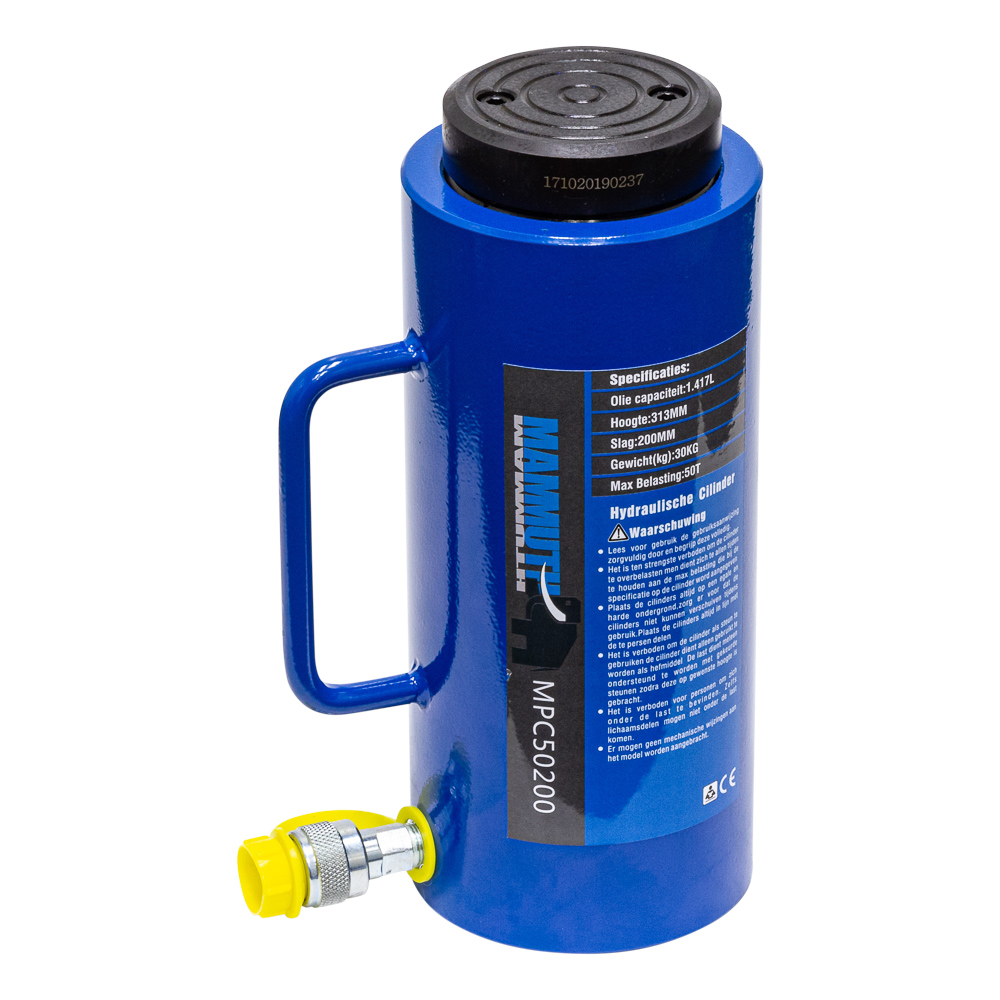

Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
output = 50 ton
stroke = 200mm
effective area = 70,9cm^2
oil capacity = 1,417 L
height of product = 312mm
extended height = 513mm
outside diameter = 128mm
bore diameter = 95mm
plunger diameter = 85mm
thread for input oil port (ZG) = 3/8" - 24
saddle protrusion form plgr = 26mm
saddle is removable
max. pressure = 700bar
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 205 mm |
| Product Width | 235 mm |
| Product Height | 320 mm |
| Product Weight | 25.5 Kg |
| Package Dimensions: | |
| Package Length | 385 mm |
| Package Width | 190 mm |
| Package Height | 190 mm |
| Package Weight | 26.50 Kg |
