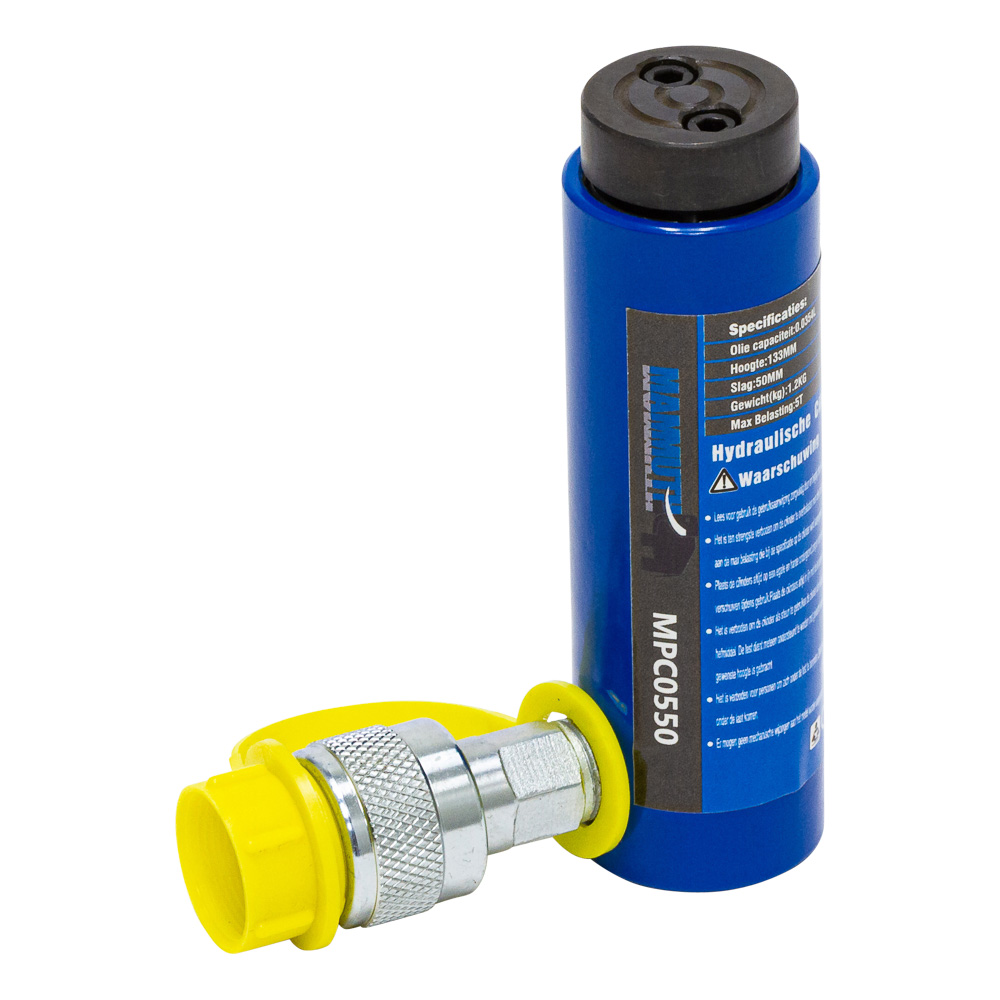

Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
- output = 5 ton
- stroke = 50mm
- effective area = 9,6cm^2
- oil capacity = 0,036 L
- height of product = 133mm
- extended height = 183mm
- outside diameter = 40mm
- bore diameter = 30mm
- plunger diameter = 25mm
- thread for input oil port (ZG) = 1/4" - 18
- saddle protrusion form plgr = 13mm
- saddle is removable
- max. pressure = 700bar
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 110 mm |
| Product Width | 40 mm |
| Product Height | 135 mm |
| Product Weight | 1.2 Kg |
| Package Dimensions: | |
| Package Length | 385 mm |
| Package Width | 185 mm |
| Package Height | 125 mm |
| Package Weight | 2.00 Kg |
