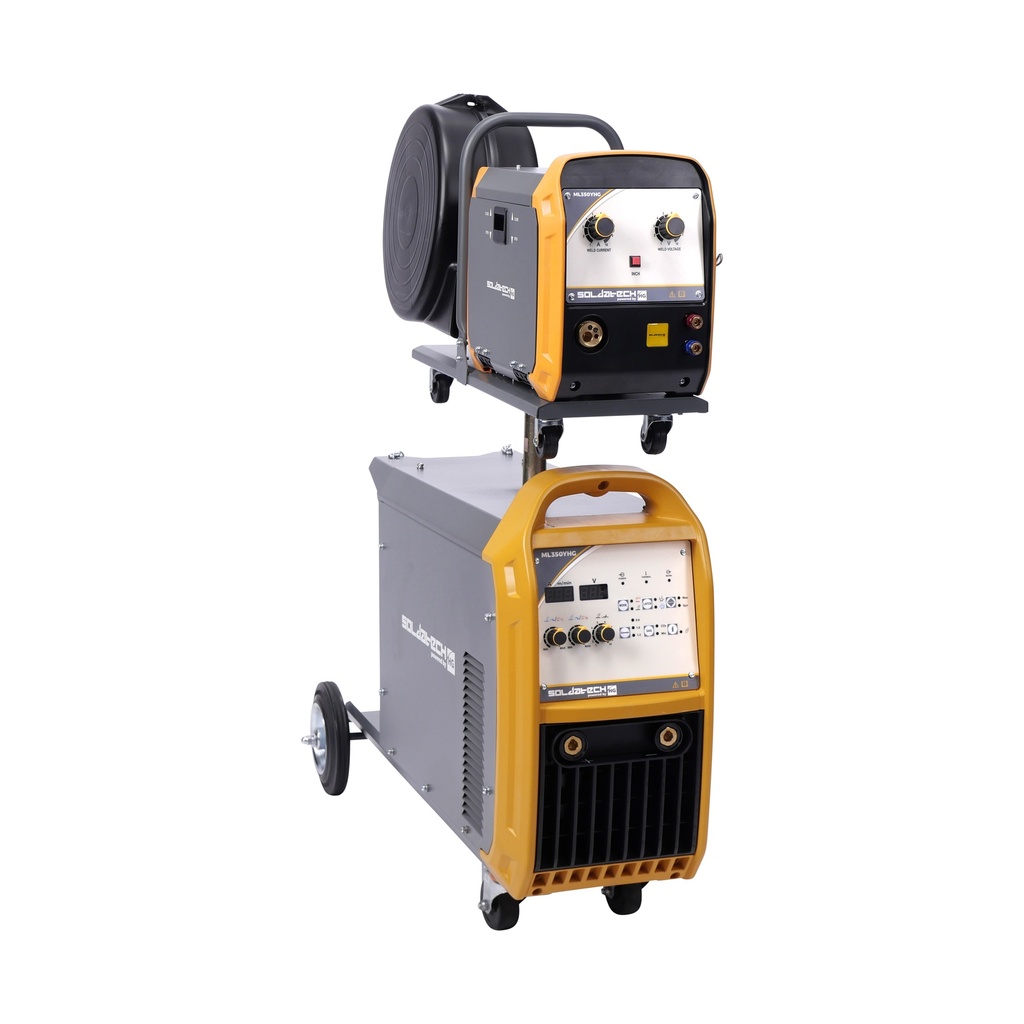

MIG/MAG 350A welding inverter / synergetic inverter / welding machine
This Soldatech powered by HG MIG / MAG welding machine is standard equipped with a carrying platform to attach the gas bottle. This machine makes it possible to carry out various welding processes with ease, including MIG welding and also electrode welding.
The modern IGBT inverter technology ensures that the ML350YHG delivers sustainable performance with more power and a very high duty cycle. The ML350YHG is also equipped with thermal safety as standard, which in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.
Furthermore, the mobile wire feed unit is equipped with a control panel on which welding voltage and current strength, among other things, can be easily adjusted. The power source is also equipped with preprogrammed synergetic programs for welding various materials.
The hot-start/anti-stick function increases the welding current quickly, so that the electrode does not stick to the workpiece during ARC welding.
Ideal for welding stainless steel, carbon steel, low alloy steel and aluminium (without pulse).
Each ML350YHG comes standard including:
Soldatech MLT36M4 MIG torch with Euro connector and 4m cable
Welding ground clamp with 3m 35mm² cable
European dinse couplers 13mm
Gas line including quick coupling 7m
Intermediate cable bundle grommet 5m
5-pin 32A plug with 3.5m 4x4mm² cable
4x Wire drive roll: 2x 0.8 + 1.0 and 2x 1.2 + 1.6
Technical specifications:
voltage = 400V - 3 phase
frequency = 50/60Hz
circuit breaker = 32A B-char
input power = 16.8kVA
no load voltage = 73V
- duty cycle (at 20°C ambient temperature) = 100% - 350A
- duty cycle (at 40°C ambient temperature) = 60% - 350A
welding current range MIG/MAG = 40 - 350A
welding current range MMA = 40 - 350A
weldable welding wire = 0.8 / 1.0 / 1.2 / 1.6mm
protection class = IP21S
dimensions = 1000 x 420 x 1200mm
weight = 69kg
| Product Dimensions: | |
|---|---|
| Product Length | 1,000 mm |
| Product Width | 420 mm |
| Product Height | 1,200 mm |
| Product Weight | 69.0 Kg |
| Package Dimensions: | |
| Package Length | 1,035 mm |
| Package Width | 495 mm |
| Package Height | 735 mm |
| Package Weight | 87.00 Kg |
