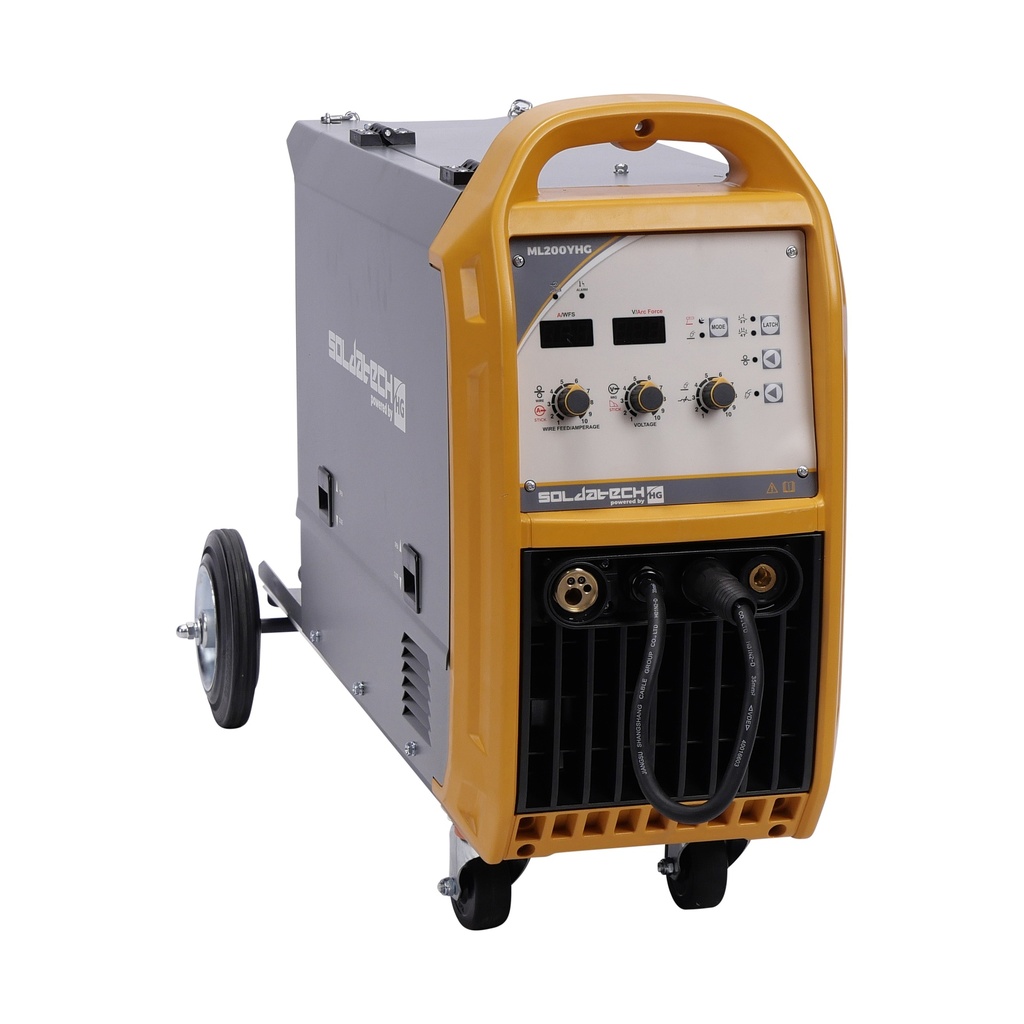

MIG/MAG 200A welding inverter / inverter / welding machine
This Soldatech powered by HG MIG / MAG welding machine is standard equipped with a carrying platform to attach the gas bottle. This machine makes it possible to carry out various welding processes with ease, including MIG welding and also electrode welding.
The modern IGBT inverter technology ensures that the ML200YHG delivers sustainable performance with more power and a very high duty cycle. The ML200YHG is also equipped with thermal safety as standard, which in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.
The hot-start/anti-stick function increases the welding current quickly, so that the electrode does not stick to the workpiece during ARC welding.
Ideal for welding stainless steel, carbon steel, low alloy steel and aluminium (without pulse).
Inclides:
MLT24M3 MIG torch with Euro connector 3m cable
Welding ground clamp with 3m 25mm² cable
European 13mm Dinse couplers
Gas line including quick coupling 4m
3-pin 32A plug with 3m 3x4mm² cable
2x wire feed roll: 0.8 + 1.0
Technical specifications:
voltage = 230V - 1 phase
frequency = 50/60Hz
circuit breaker = 16A C-char
input power = 10kVA
no load voltage = 76V
duty cycle (at 20°C ambient temperature) = 100% - 200A
duty cycle (at 40°C ambient temperature) = 60% - 200A
welding current range MIG/MAG = 30 - 200A
welding current range MMA = 20 - 200A
weldable welding wire = 0.8 / 1.0 / 1.2mm
protection class = IP21S
dimensions = 990 x 495 x 720mm
weight = 44.5kg
| Product Dimensions: | |
|---|---|
| Product Length | 990 mm |
| Product Width | 495 mm |
| Product Height | 720 mm |
| Product Weight | 44.5 Kg |
| Package Dimensions: | |
| Package Length | 1,035 mm |
| Package Width | 500 mm |
| Package Height | 735 mm |
| Package Weight | 68.00 Kg |
