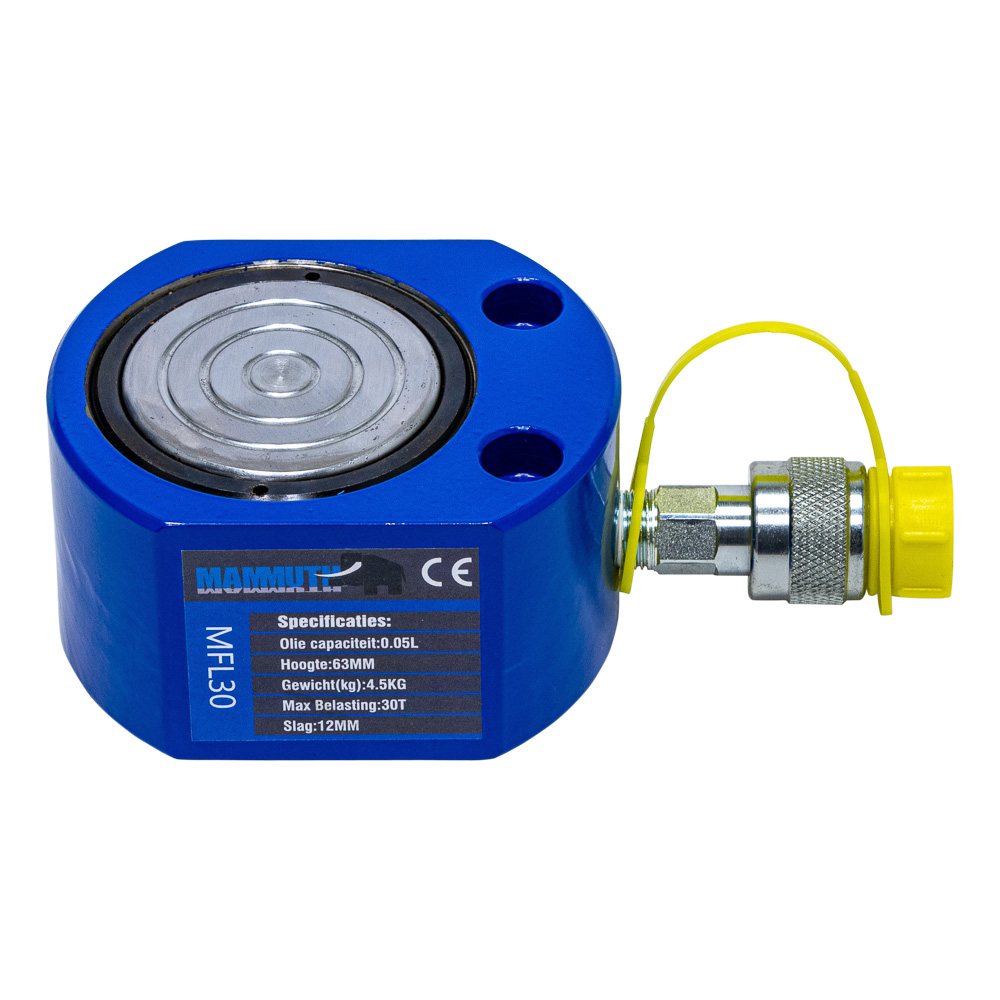

Flat cylinder
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.
output = 30 Ton
stroke = 12mm
effective area = 31,1cm^2
oil capacity = 0.05 L
height of product = 63mm
extended height = 75mm
outside diameter = 115x95mm
bore diameter = 75mm
plunger diameter = 63mm
thread for oil input = 3/8''-19
saddle protusion form Plgr = 2mm
max. pressure = 700bar
Product Dimensions: | |
---|---|
Product Length | 185 mm |
Product Width | 95 mm |
Product Height | 63 mm |
Product Weight | 4.5 Kg |
Package Dimensions: | |
Package Length | 255 mm |
Package Width | 155 mm |
Package Height | 105 mm |
Package Weight | 5.00 Kg |
