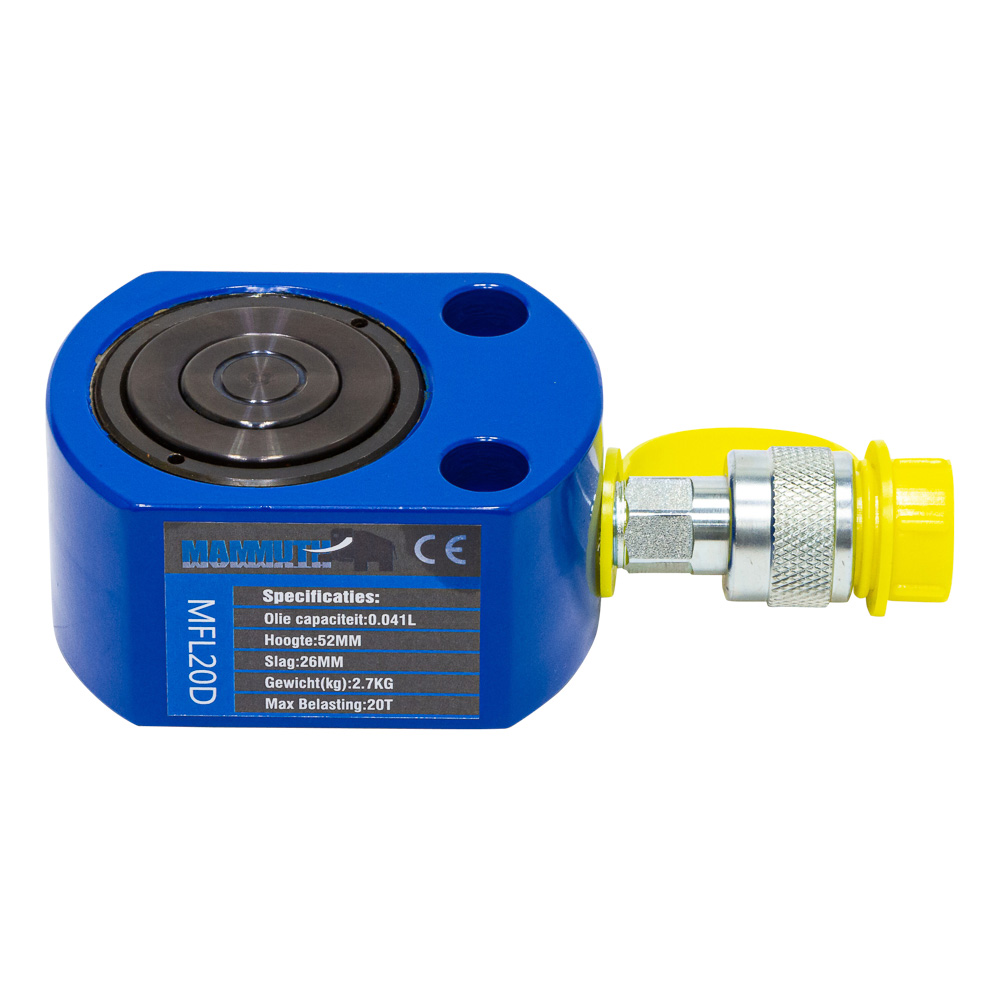

Flat cylinder double
The stroke from the double cylinders is higher then the stroke from the single cylinders.
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.
output = 20 ton
stroke = 26mm
effective area = 19,6cm^2
oil capacity = 0,041 L
height of product = 52mm
extended height = 80mm
outside diameter = 100x77mm
bore diameter = 60mm
plunger diameter = 53mm
max. pressure = 700bar
Product Dimensions: | |
---|---|
Product Length | 175 mm |
Product Width | 80 mm |
Product Height | 80 mm |
Product Weight | 2.4 Kg |
Package Dimensions: | |
Package Length | 260 mm |
Package Width | 155 mm |
Package Height | 110 mm |
Package Weight | 3.00 Kg |
