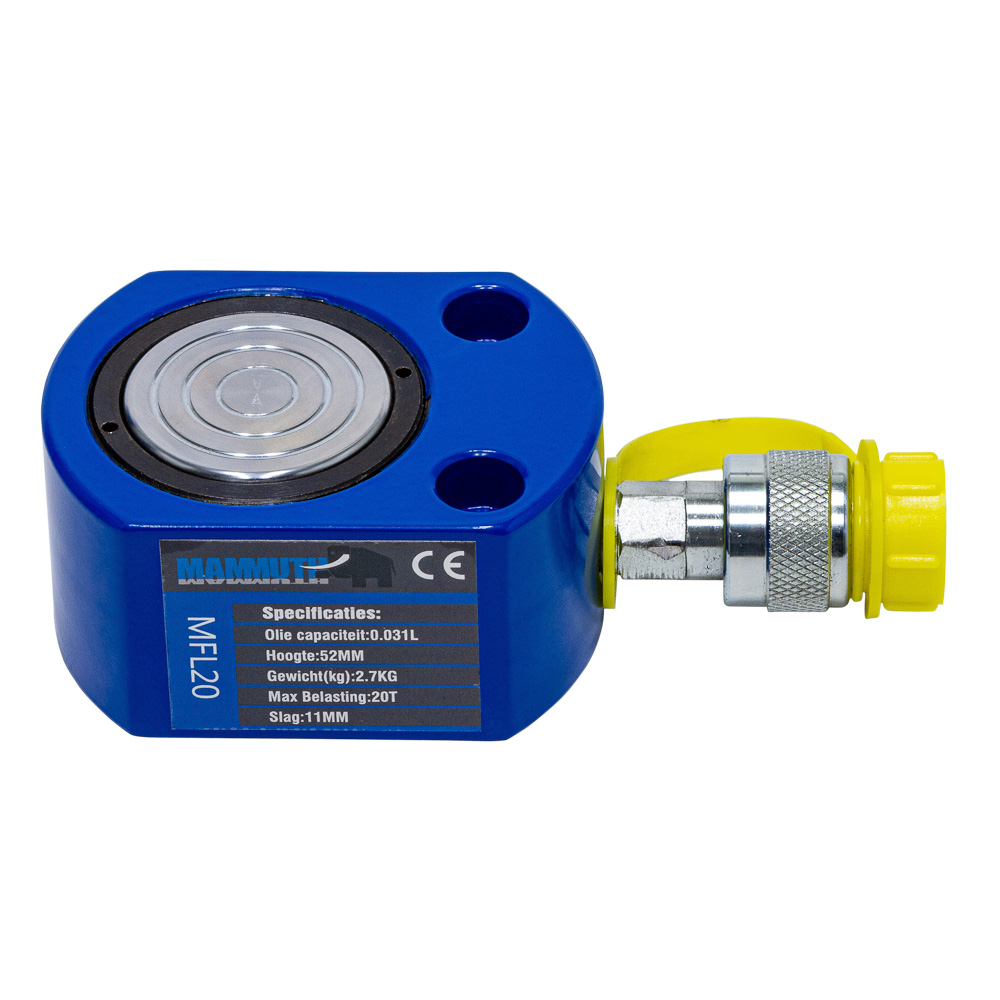

Flat cylinder
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.
output = 20 Ton
stroke = 11mm
effective area = 22cm^2
oil capacity = 0.031 L
height of product = 52mm
extended height = 63mm
outside diameter = 100x77mm
bore diameter = 60mm
plunger diameter = 53mm
thread for oil input = 3/8''-19
saddle protusion form Plgr = 2mm
max. pressure = 700bar
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 175 mm |
| Product Width | 80 mm |
| Product Height | 52 mm |
| Product Weight | 2.7 Kg |
| Package Dimensions: | |
| Package Length | 255 mm |
| Package Width | 155 mm |
| Package Height | 115 mm |
| Package Weight | 3.00 Kg |
