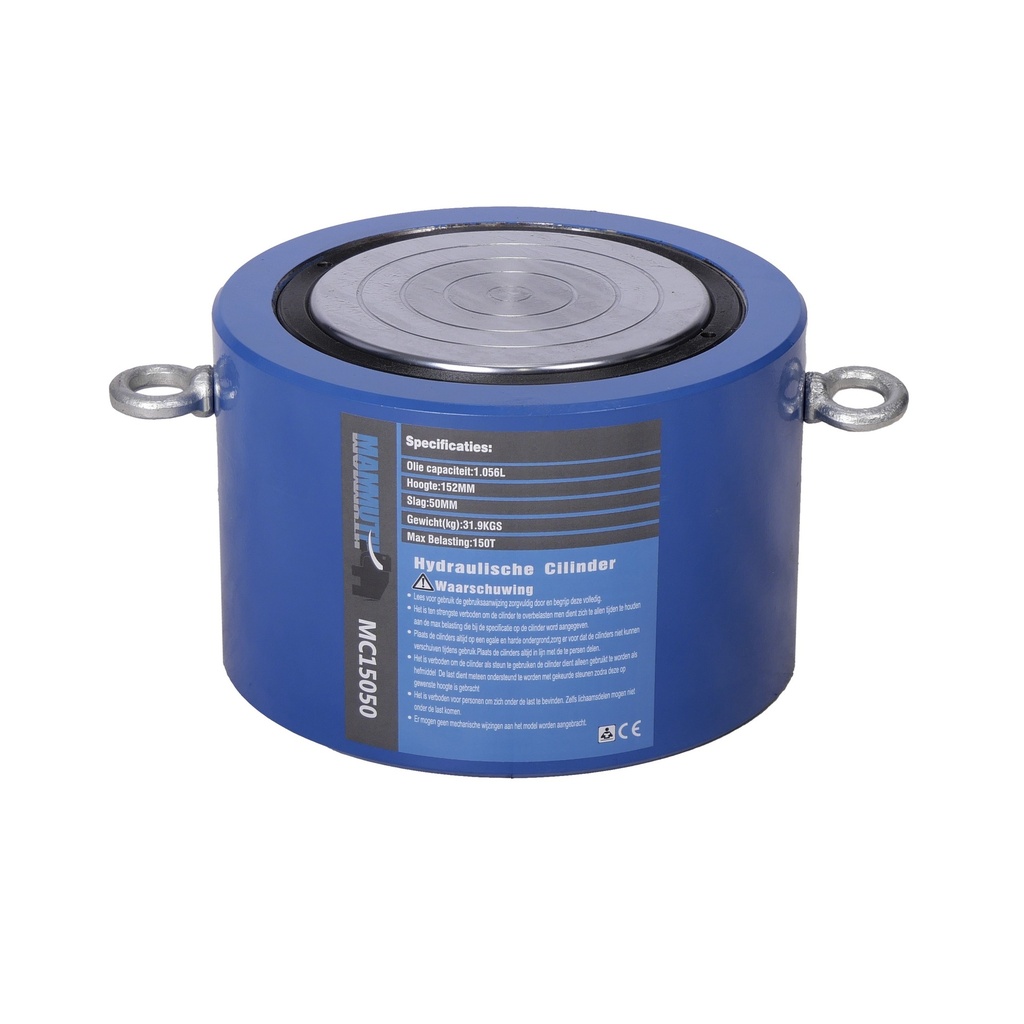

Hydraulic cylinder
It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
output = 150 ton
stroke = 50mm
effective area = 162,8cm^2
oil capacity = 1,056 L
height of product = 152mm
extended height = 202mm
outside diameter = 207mm
bore diameter = 164mm
plunger diameter = 144mm
thread for input oil port (ZG) = 3/8" - 19
saddle protrusion form plgr = 2mm
saddle is removable
max. pressure = 700bar
Product Dimensions: | |
---|---|
Product Length | 275 mm |
Product Width | 205 mm |
Product Height | 145 mm |
Product Weight | 32.0 Kg |
Package Dimensions: | |
Package Length | 285 mm |
Package Width | 215 mm |
Package Height | 155 mm |
Package Weight | 34.00 Kg |
