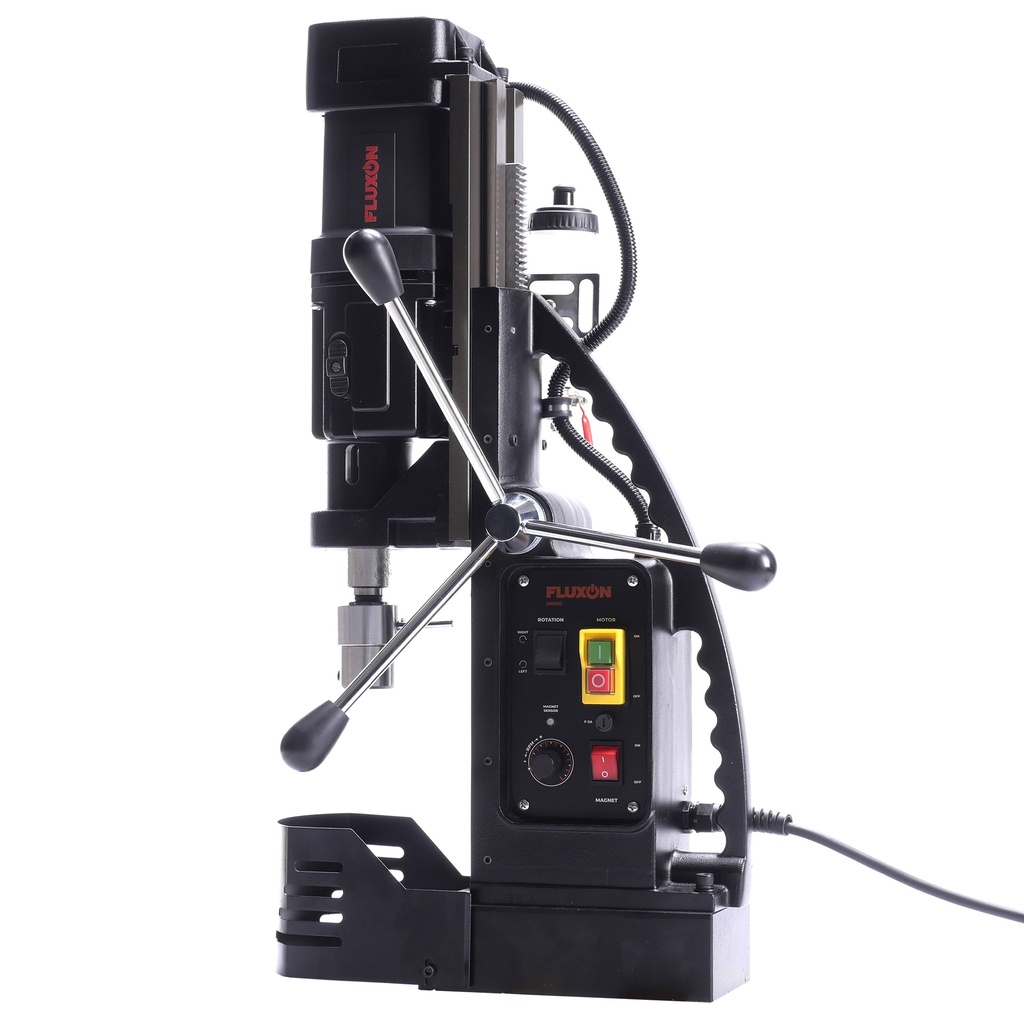

Magnetic drilling machine 100 mm

[MB100] Magnetic drilling machine 100 mm

Wood and Metal working / Metal working machinery / Magnetic drilling machines / Magnetic drilling machines Brand: Fluxon Fluxon

Product Code: MB100

EAN: 8720028108244

Availability: Available

https://www.valkenpower.com/web/image/product.template/63908/image_1920?unique=5ceeb6c

€ 1,375.00 1375.0 EUR € 1,375.00

€ 1,375.00

Not Available For Sale

  • Frequency
  • Motor power
  • Voltage
  • Stroke
  • Thread size
  • Speed loaded
  • Speed unloaded
  • Total power
  • Annular cutters
  • Twist drills
  • Countersinking
  • Magnet (L x W x H)
  • Magnetic force
  • Spindle (Weldon)

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Crafted for power and efficiency, the Fluxon Magnetic Drilling Machine stands out for your heavy-duty drilling needs.The Magnetic Drilling Machine is designed with a powerful motor, integrated cooling system and a compact, lightweight structure. Perfect for a variety of heavy-duty applications that require precision and power.

Product Dimensions:
Product Length 350 mm
Product Width 200 mm
Product Height 520 mm
Product Weight 26.3 Kg
Package Dimensions:
Package Length 450 mm
Package Width 780 mm
Package Height 230 mm
Package Weight 37.00 Kg

  • Magnetic force 2500kg
  • Four speed gearbox
  • Suitable for threating
  • Stepless adjustable speed
  • Powerful motor

Specifications

Frequency 50/60 Hz
Motor power 1800 W
Voltage 220 - 240V
Stroke 260 mm
Thread size M3 - M30
Speed loaded 1st - 85 rpm/ 2nd - 152 rpm/ 3rd - 270 rpm/ 4th - 480 rpm
Speed unloaded 1st - 40 - 110 rpm/ 2nd - 65 - 180 rpm/ 3rd - 140 - 380 rpm/ 4th - 220 - 610 rpm
Total power 1950 W
Annular cutters Ø 12 - 100 mm
Twist drills Ø 1 - 31.75 mm
Countersinking Ø 10 - 105 mm
Magnet (L x W x H) 220 x 110 x 64 mm
Magnetic force 2500 kg
Spindle (Weldon) MT3 19.05 mm
