Scissor lift table / scissor table / platform lift / lift table / fixed lift table

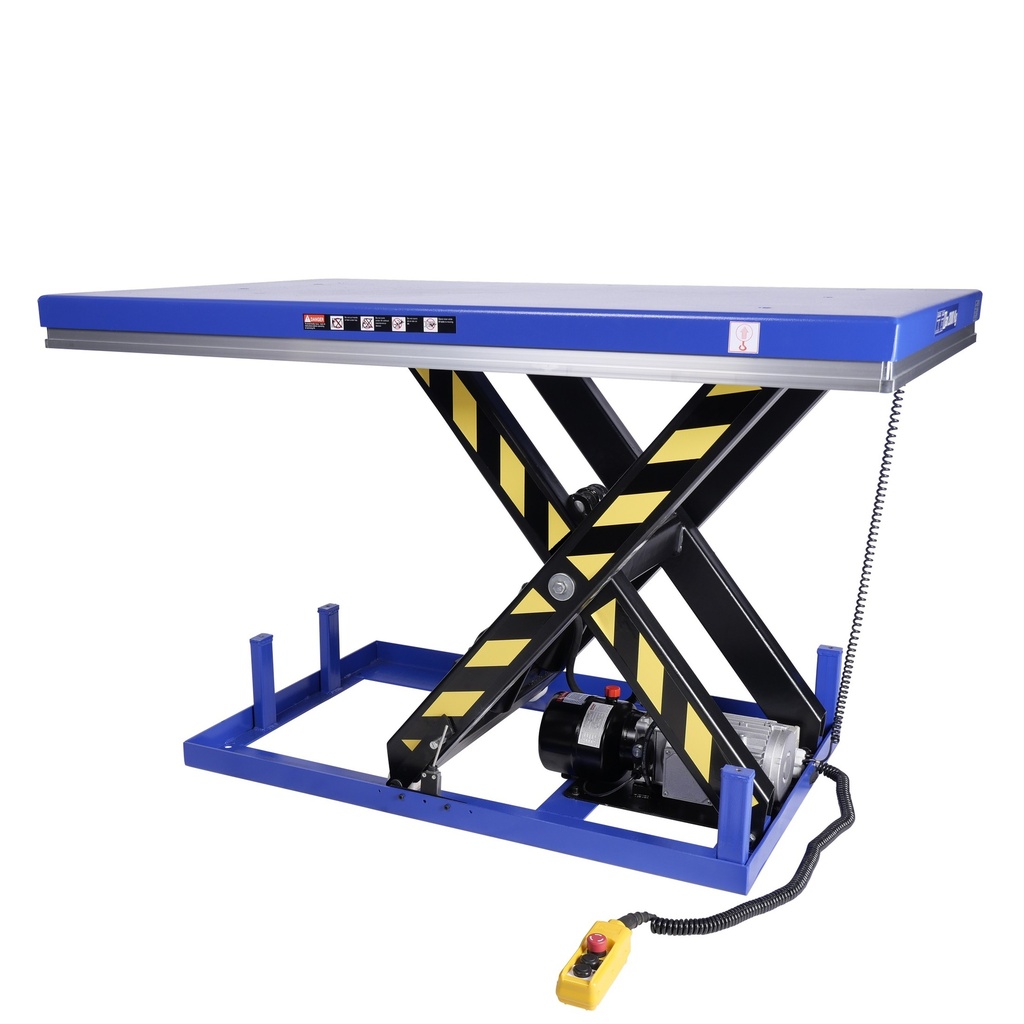

This Mammuth fixed, electric lift table is ideal for moving machines and goods up to 1000kg in height. The table can be used both as built-in and surface-mounted. The lift is equipped with a switch box that is mounted under the table and a safety edge. This edge ensures that the lift stops lowering when something gets underneath.
Due to the electrical operation, ergonomic work is guaranteed.
Technical specifications:
capacity = 2000kg
minimum height = 230mm
maximum height = 1000mm
platform size = 1600 x 1000mm
platform height = 60mm
lifting time unloaded = 17 sec.
cable control length = 3,7m
voltage = 400V
power = 2,2kW
oil capacity = 3L
Note: The lifting table is supplied without a plug!
| Product Dimensions: | |
|---|---|
| Product Length | 1,600 mm |
| Product Width | 1,000 mm |
| Product Height | 1,000 mm |
| Product Weight | 268.0 Kg |
| Package Dimensions: | |
| Package Length | 1,600 mm |
| Package Width | 1,003 mm |
| Package Height | 340 mm |
| Package Weight | 285.00 Kg |
