Scissor lift table / scissor table / platform lift / lift table / fixed lift table

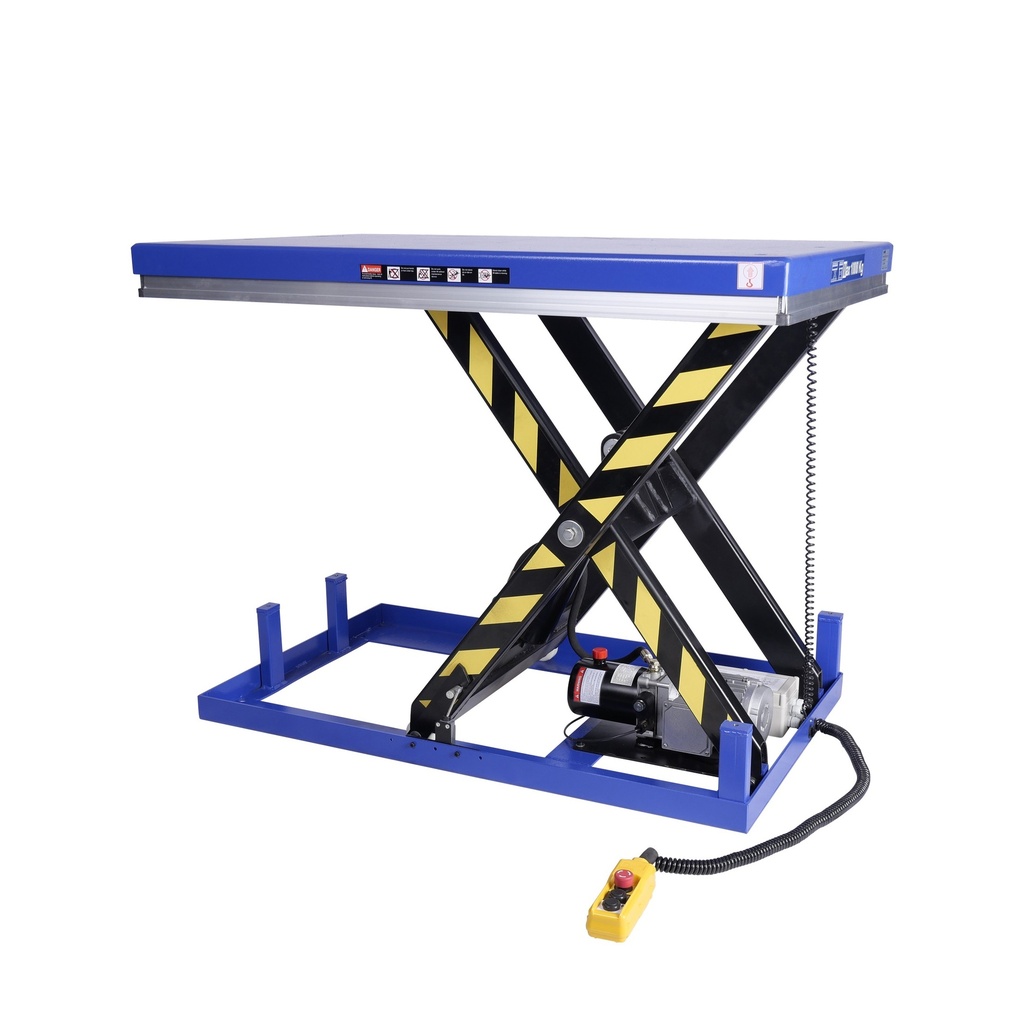

This Mammuth fixed, electric lift table is ideal for moving machines and goods up to 1000kg in height. The table can be used both as built-in and surface-mounted. The lift is equipped with a switch box that is mounted under the table and a safety edge. This edge ensures that the lift stops lowering when something gets underneath.
Due to the electrical operation, ergonomic work is guaranteed.
Technical specifications:
capacity = 1000kg
minimum height = 210mm
maximum height = 1000mm
platform size = 1300 x 820mm
platform height = 60mm
lifting time unloaded = 21 sec.
cable control length = 3,7m
voltage = 230V
power = 1,1kW
oil capacity = 1,5L
Note: The lifting table is supplied without a plug!
Product Dimensions: | |
---|---|
Product Length | 1,300 mm |
Product Width | 820 mm |
Product Height | 210 mm |
Product Weight | 200.0 Kg |
Package Dimensions: | |
Package Length | 1,350 mm |
Package Width | 900 mm |
Package Height | 350 mm |
Package Weight | 220.00 Kg |
