Hand shear 12''

[HS12I] Hand shear 12''

Wood and Metal working / Metal working machinery / Bar and section shear Brand: Cowley Cowley

Product Code: HS12I

EAN: 8720028096138

Availability: Available

https://www.valkenpower.com/web/image/product.template/61354/image_1920?unique=14546fb

€ 140.00 140.0 EUR € 140.00

€ 140.00

Not Available For Sale

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

sheet metal shears / lever hand scissors / lever shears

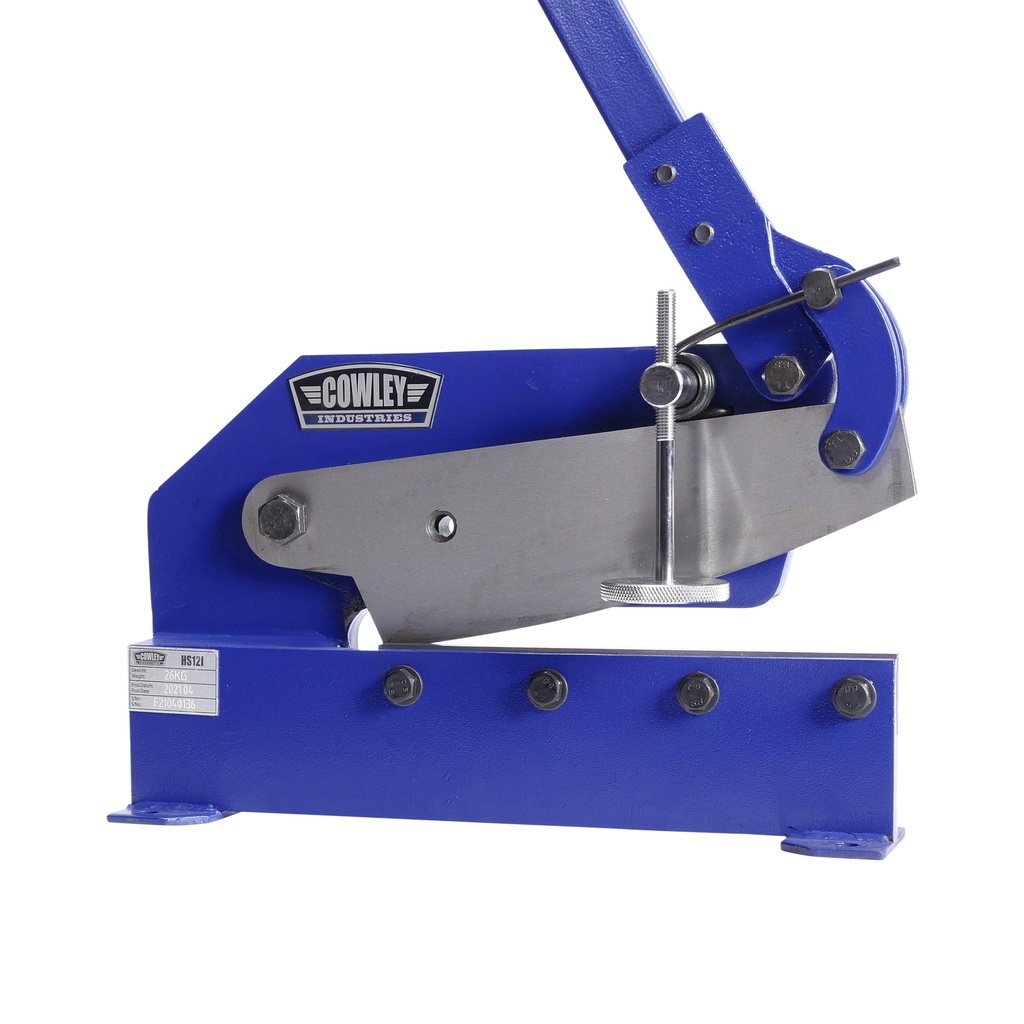

Hand shear from Cowley is a durable universal cutter for sheet, round steel and flat bar.
The lever shears are capable of cutting round steel up to 11 mm in diameter, sheet steel up to 4 mm thick and flat steel up to 70x5 mm in size. The scissors are equipped with a strong, height-adjustable down holder which prevents twisting of the steel during cutting. Due to high quality cutting blades and the favourable cutting geometry of the arched top blade the shear has a smooth and easy cutting stroke.
The features of this model:

  • cutting of sheet and rod from various materials.
  • replaceable high-quality, hardened blades made of tool steel.
  • handle included as standard.
  • Mounting holes are provided in the body for fixing the scissors to the workbench.
  • Includes through hole in the upper blade for exact cutting of round material
  • Heavy steel frame.
  • Height adjustable downholder prevents twisting of the sheet during cutting.
  • The long steel handle is for extra leverage.
  • Easy sheet pull-through due to special form.
  • Flawless work after marking out thanks to a good view of the knives.

    Technical specifications:
  • Blade length = 304.8 mm (12")
  • Cutting length max. = 265 mm
  • Capacity sheet steel* = 4.0 mm (* Material strength 400 N/mm², not over the entire length)
  • Capacity round steel = 11 mm
  • Capacity flat steel = 70 x 5 mm

Product Dimensions:
Product Length 470 mm
Product Width 150 mm
Product Height 120 mm
Product Weight 26.0 Kg
Package Dimensions:
Package Length 540 mm
Package Width 480 mm
Package Height 150 mm
Package Weight 27.50 Kg

  • Adjustable downholder
  • Go through hole for cutting round material
  • 265 mm cutting length
