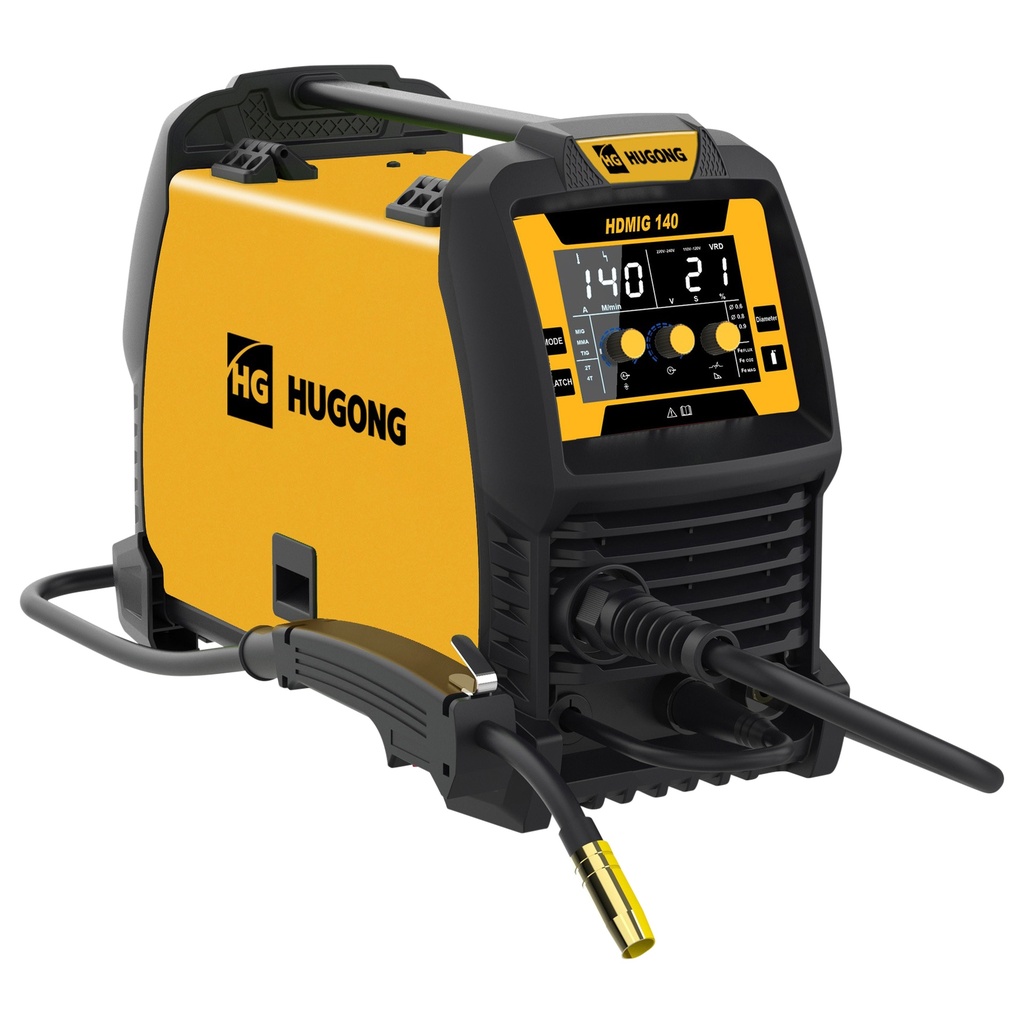

The Hugong HDMIG140 is a compact 3-in-1 inverter welder suitable for MIG/MAG, MMA (stick), and Lift-TIG welding. Its lightweight and portable design makes it ideal for mobile use.
Equipped with IGBT waveform technology and a clear HD LED display, this machine allows precise adjustment of arc settings. The HDMIG140 can weld steel, stainless steel, aluminium, and flux-cored wire, and is especially well-suited for thin sheet metal work.
Key feature:
- 3-in-1 welding process: MIG, MMA, and Lift-TIG
Flexible functionality in one compact machine.
- Compact and portable design
Lightweight and easy to carry—ideal for on-site work and tight spaces.
- Digital HD LED display with waveform control
User-friendly interface with stable arc performance thanks to digital control.
- Shock-resistant ABS housing
Protects against impact and built for everyday workshop use.
- 5-year warranty upon registration
Extended warranty coverage as proof of Hugong’s long-term quality.
Supplied with:
- MIG torch EP1500 – 3 meters
- Ground clamp with 3-meter cable (16 mm², 10–25 DINSE)
- 4-meter gasinlet hose with connector
- Wire feed rollers 0.8/0.9 (flux-cored) and 0.8/1.0 (solid)
- Contact tips: 0.6 mm, 0.9 mm, 1.0 mm
- 10–16 wire clamp
Specifications
| Frequency | 50/60 Hz |
| Voltage | 230V - 1 Phase |
| No load voltage | 60V |
| Input power | 4.37kVA |
| Rated input current | 19A |
| Duty cycle @20C | 40% - 140A |
| Duty cycle @40C | 20% - 140A |
| Welding current range | MIG 30 - 140A / MMA 30 - 115 / TIG 25 - 140A |
| Protection class | IP21S |
| Product Dimensions: | |
|---|---|
| Product Length | 495 mm |
| Product Width | 217 mm |
| Product Height | 380 mm |
| Product Weight | 10.5 Kg |
| Package Dimensions: | |
| Package Length | 600 mm |
| Package Width | 320 mm |
| Package Height | 450 mm |
| Package Weight | 13.85 Kg |
