Pan and box brake 1020mm 2,0mm

[FM025B] Pan and box brake 1020mm 2,0mm

Wood and Metal working / Metal working machinery / Pan & box brake Brand: Cowley Cowley

Product Code: FM025B

EAN: 8720028044757

Availability: Available

https://www.valkenpower.com/web/image/product.template/59068/image_1920?unique=7e313a5

€ 1,235.00 1235.0 EUR € 1,235.00

€ 1,235.00

Not Available For Sale

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

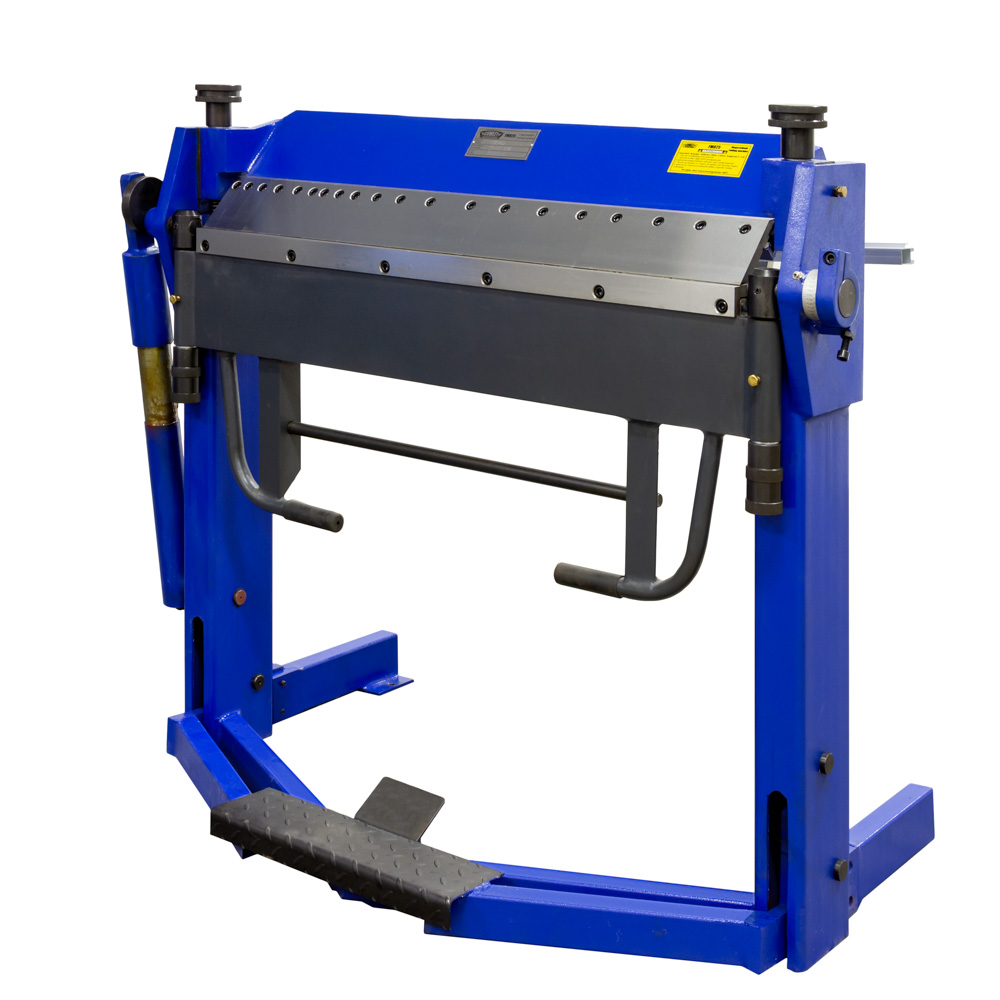

Pan and box brake / segment bending machine

This Cowley pan and box brake is suitable for folding smaller materials. Many different sizes are possible using the adjustable segments. This model is equipped with a foot pedal for securing steel plate. The machine is also supplied including a solid back gauge with metric scaling.

Technical specifications:

  • max. working width = 1020mm

  • max. thickness = 2.0mm

  • bending angle = 0 - 135 degrees

  • max. clamping bar lift = 47mm

Sizes segments:

Product Dimensions:
Product Length 0 mm
Product Width 0 mm
Product Height 0 mm
Product Weight 285.0 Kg
Package Dimensions:
Package Length 1,420 mm
Package Width 560 mm
Package Height 1,280 mm
Package Weight 320.00 Kg

  • 12 segments

  • Back gauge with dimensions

  • Degree setting for the angle of the plate

  • Foot clamp
