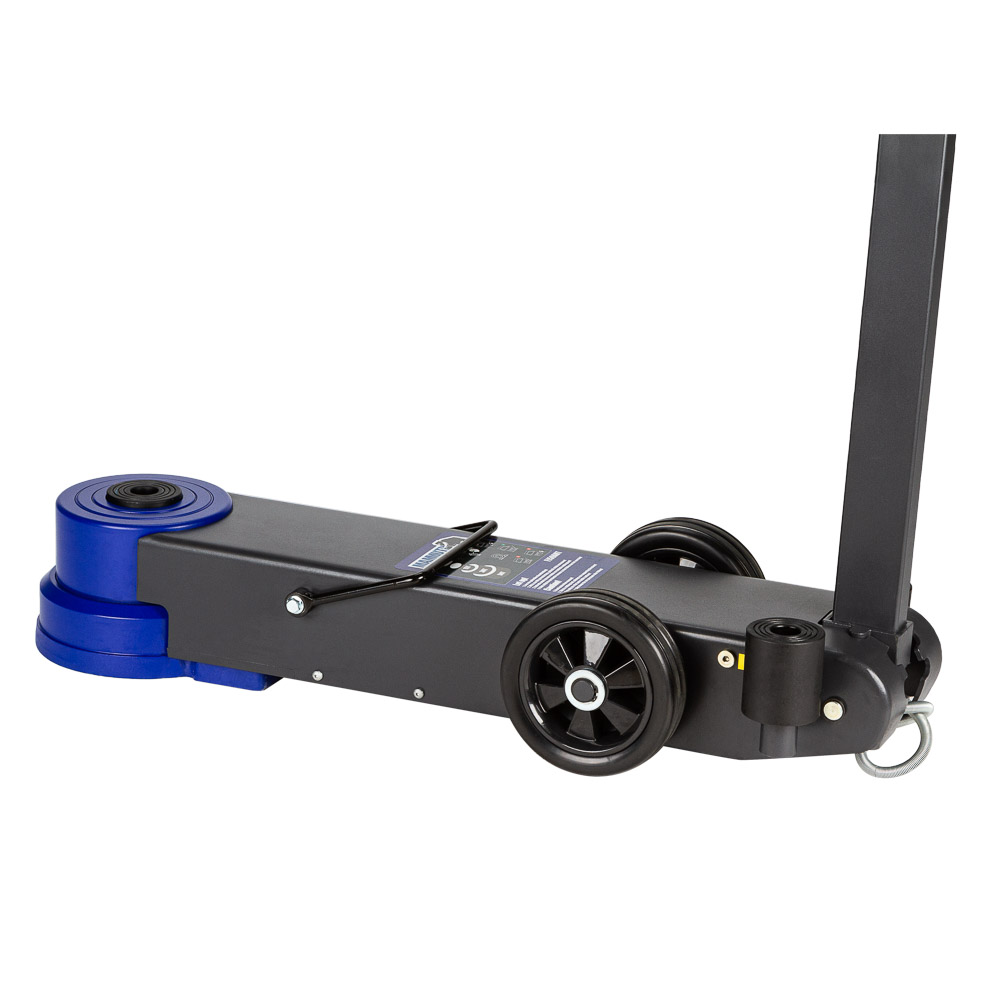

This series of Mammuth pneumatic hydraulic garage jacks are ideal for intensive industrial use.
With these air jacks, safe lifting of trucks, buses, trailers, machines and more becomes a simple job.
Thanks to its sophisticated design, this air jack has the following useful features:
dead man's switch: jack immediately switches off when the joystick is released
optimum stability due to the wide base
hard chromed cylinders, both internal and external
cylinders are provided with sealing rings to prevent oil leakage
safety overload valve
reducing valve for delay during lowering
large sturdy rubber wheels
Specifications:
capacity = 50T / 30T / 15T
minimum lifting height = 149mm
maximum lifting height without adapters = 313mm
maximum lifting height with adapters = 433mm
step 1 - 50T = 51mm, height from floor = 200mm
step 2 - 30T = 50mm, height from floor = 250mm
step 3 - 15T = 63mm, height from floor = 313mm
adapters = 75mm and 45mm
average air consumption = 300L/min
working pressure = 9 - 12 bar
coupling = male connector euroline 1/4"
Product Dimensions: | |
---|---|
Product Length | 700 mm |
Product Width | 330 mm |
Product Height | 1,345 mm |
Product Weight | 54.0 Kg |
Package Dimensions: | |
Package Length | 1,390 mm |
Package Width | 290 mm |
Package Height | 340 mm |
Package Weight | 66.50 Kg |
Package Type: | |
12 Pcs |
