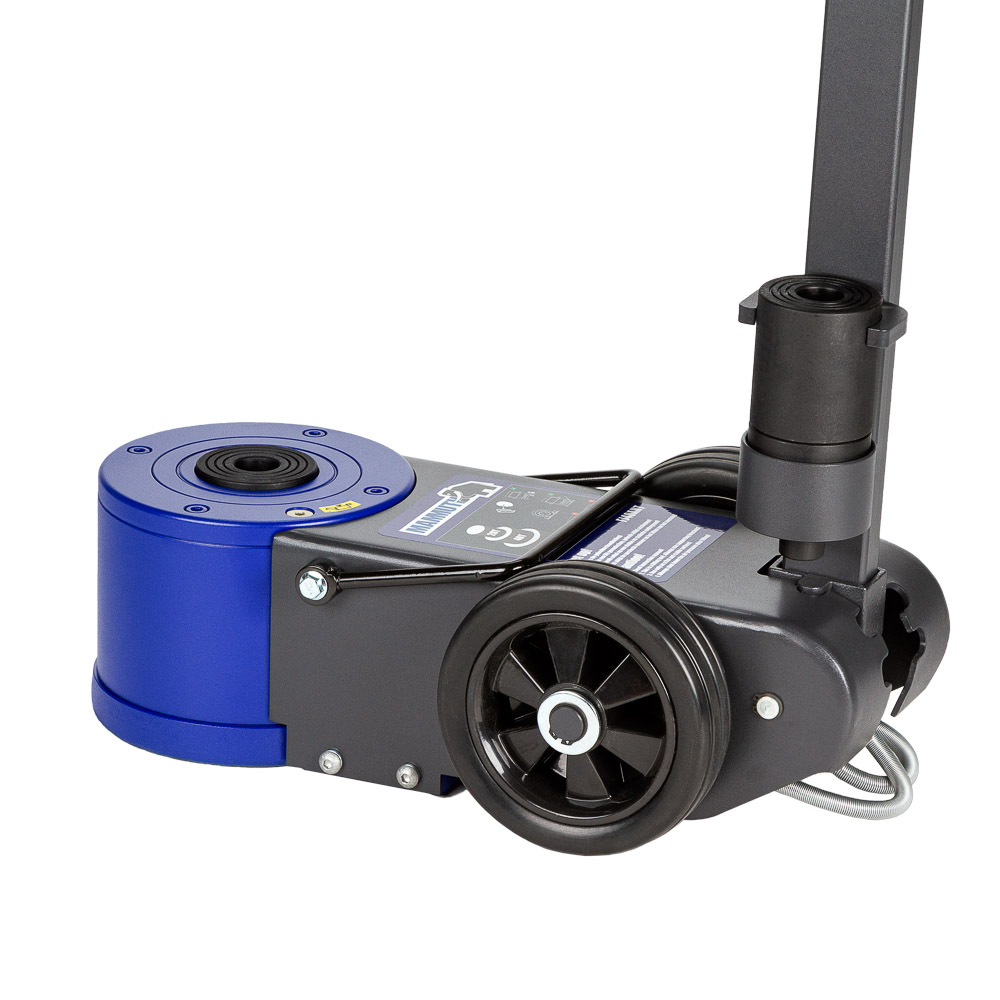

This Mammuth truck jack lifts heavy vehicles quickly and effortlessly. Suitable for workshops that work with commercial vehicles, trucks, or agricultural machinery.
- Pneumatic: For fast and strain-free operation.
- 3-position handle: Set the handle in three different positions.
- Controlled lowering speed: Ensures a safe and controlled descent.
- Dead man’s control: Automatically shuts off when the control is released.
-
Includes 2 height adapters: Supplied with two adapters of 45 mm and 70 mm height.
Specifications
| Material | Steel |
| Lifting capacity | 40 ton / 20 ton |
| Lifting height min. | 150 mm |
| Lifting height max. | 409 mm |
| Platform dimensions | ø70 mm |
| Handle length | 1300 mm |
| Wheel material | Rubber/polypropylene |
| Wheel diameter | ø165 mm |
| Working air pressure | 9 - 12 bar |
| Air consumption | 300 L/min |
| Air connection | 1/4 Bsp |
| Oil capacity | 1 L |
| Oil type | OHCH15V |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 494 mm |
| Product Width | 268 mm |
| Product Height | 150 mm |
| Product Weight | 44.0 Kg |
| Package Dimensions: | |
| Package Length | 1,390 mm |
| Package Width | 280 mm |
| Package Height | 320 mm |
| Package Weight | 48.00 Kg |
