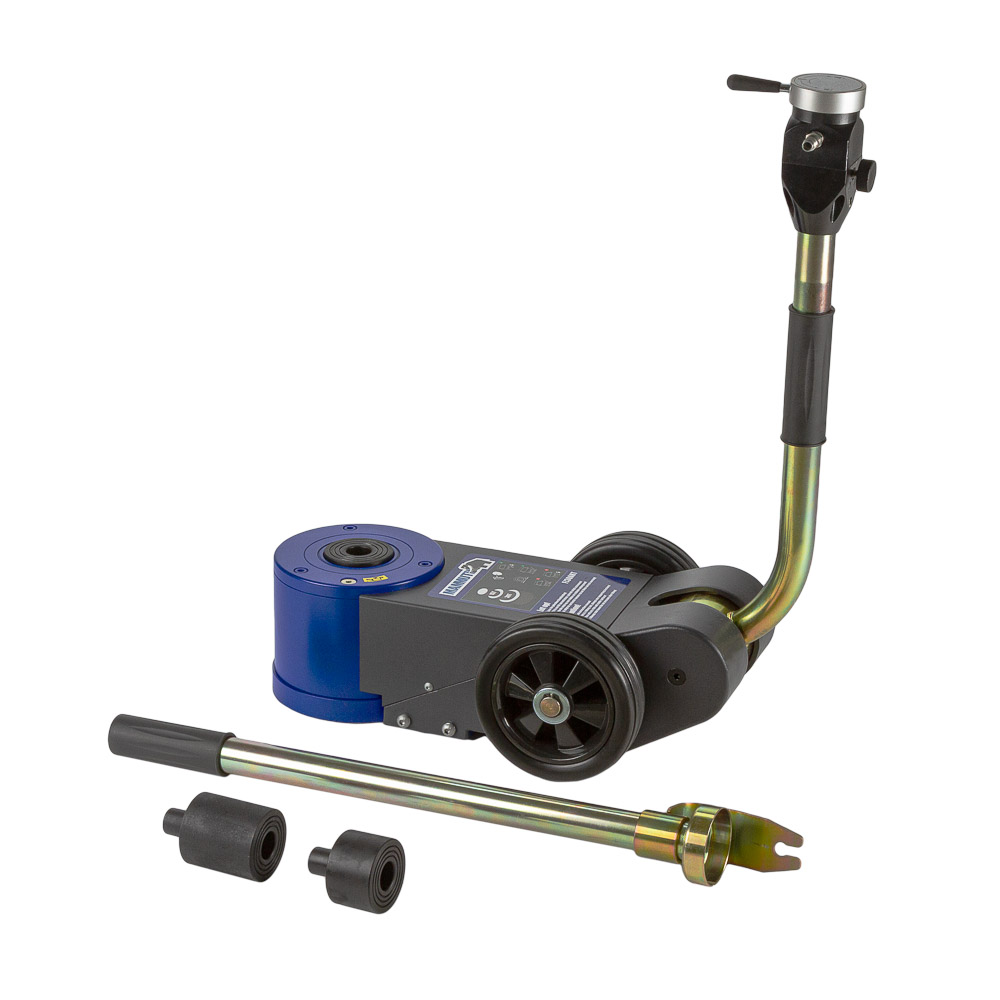

This series of Mammuth pneumatic hydraulic garage jacks are ideal for intensive industrial use.
With these air jacks, safe lifting of trucks, buses, trailers, machines and more becomes a simple job.
Thanks to its sophisticated design, this portable air jack has the following useful features:
- the folded handle also serves as a support arm and is easy to extend to a maximum of 128cm
- dead man's switch: jack immediately switches off when the joystick is released
- lightweight portable jack of only 24kg
- optimum stability due to the wide base
- the ergonomic handle contains 4 positions for lifting, carrying and moving
- hard chromed cylinders, both internal and external
- cylinders are provided with sealing rings to prevent oil leakage
- safety overload valve
- reducing valve for delay during lowering
- large sturdy rubber wheels
Specifications
| Lifting capacity | 30 ton / 15 ton |
| Lifting height min. | 145 mm |
| Lifting height max. | 295 mm (without adapters), 415 mm (with adapters) |
| Step 1 | 30T = 80 mm, height from floor = 225mm |
| Step 2 | 15T = 70mm, height from floor = 295mm |
| Adapter height | 75 mm, 45 mm |
| Working air pressure | 9 - 12 Bar |
| Average air consumption | 300 L/min |
| Connection | 1/4" male connector euroline |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 600 mm |
| Product Width | 275 mm |
| Product Height | 1,280 mm |
| Product Weight | 24.0 Kg |
| Package Dimensions: | |
| Package Length | 700 mm |
| Package Width | 290 mm |
| Package Height | 270 mm |
| Package Weight | 32.00 Kg |
| Package Type: | |
| Pallet | 12 Pcs |
