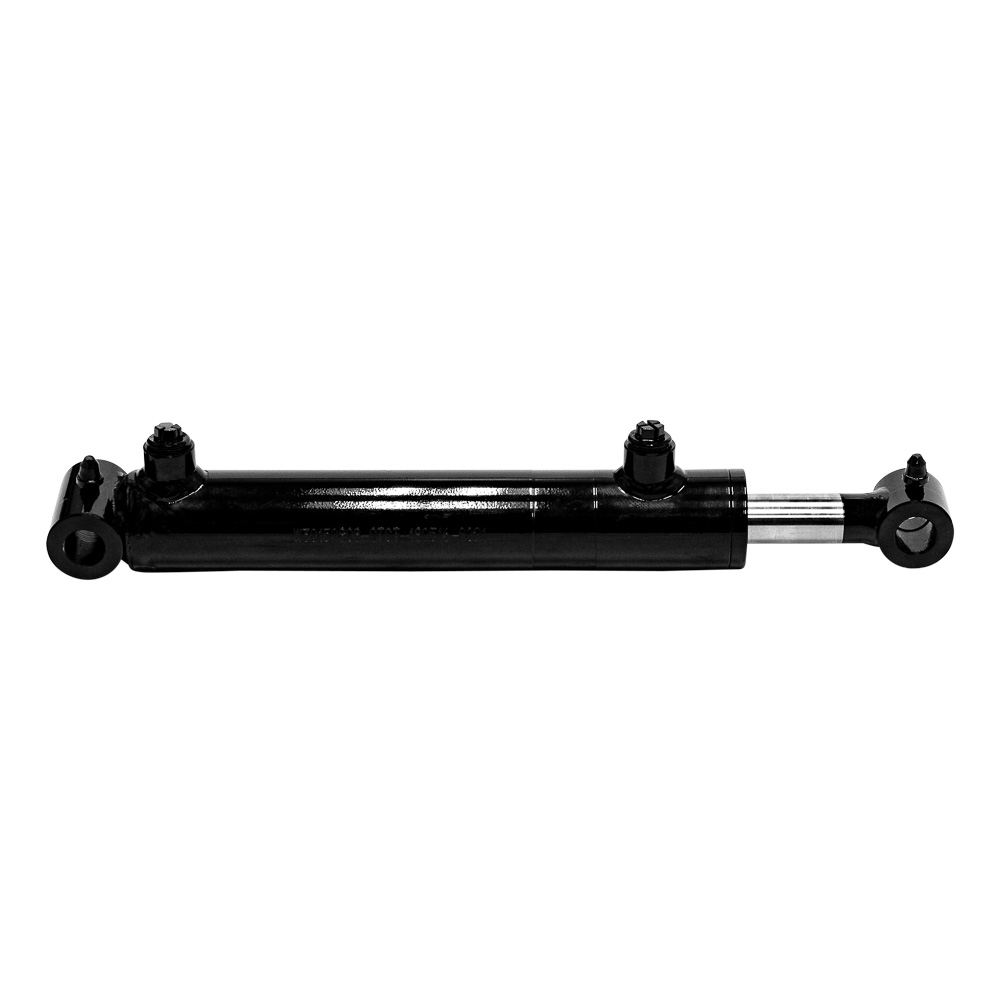

Hydraulic cilinder double action
200bar model that is designed to withstand shock loads up to 400bar
bore = 1,5'' / 38,1mm
stroke = 8'' / 203,2mm
max. push load = 2408kg
max. pull load = 1337,8kg
shaft = 1'' / 25,4mm
retracted length = 16'' / 406,4mm
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 0 mm |
| Product Width | 0 mm |
| Product Height | 0 mm |
| Product Weight | 4.1 Kg |
| Package Dimensions: | |
| Package Length | 500 mm |
| Package Width | 85 mm |
| Package Height | 85 mm |
| Package Weight | 4.20 Kg |
