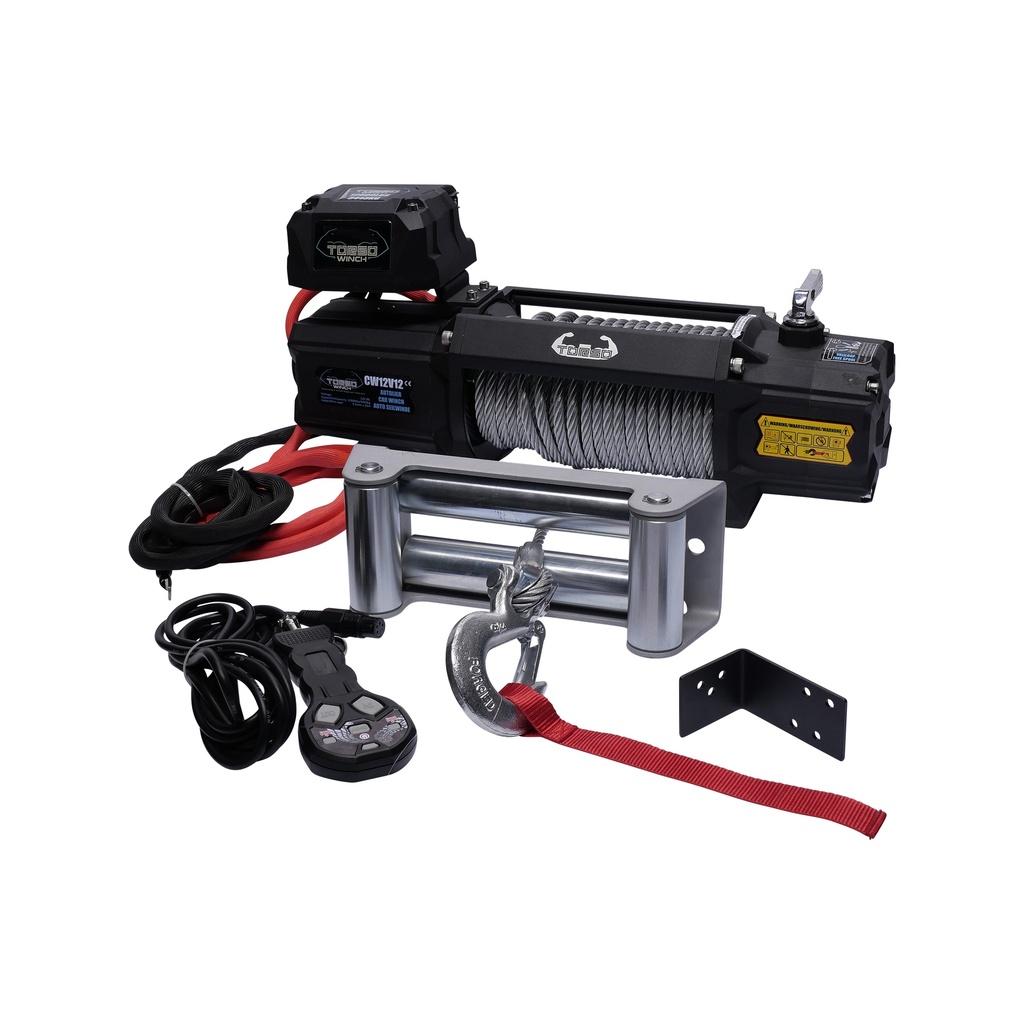

Electric winch 12V 12000lbs

[CW12V12] Electric winch 12V 12000lbs

4x4 / Winches / Car winches / Electric winches 12V Brand: Torso Torso

Product Code: CW12V12

EAN: 8720028081653

Availability: Available

https://www.valkenpower.com/web/image/product.template/49021/image_1920?unique=41f2eff

€ 425.00 425.0 EUR € 425.00

€ 425.00

Not Available For Sale

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Car winch / bumperwinch
Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:

  • 4-way fair load roller, for excellent cable mobility

  • remote control: can be used with both cable and wireless

  • length control cable = 3.8m

  • range wireless control = 65m

  • battery = L1028F, not rechargeable

  • clevis pinned / latched hook

  • 1.8m battery conection cable

  • hand operated clutch for free spooling

  • automatic brake in the event of a power failure

  • 1.5 ton pulley block

Optional mounting plate, ensures correct mounting of the winch.
The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.
Technical specifications:

  • 12V single line

  • rated pull = 5443kg (12000lbs)

  • gear reduction ratio = 265:1

  • Serie-wound motor = 12V 6HP

  • drum size = 63 x 226mm

  • cable length = 25m

  • cable diameter = 9.5mm

  • line pull = 0kg, 1814kg, 2722kg, 4536kg, 5443kg

  • line speed = 6.8mpm, 3.8mpm, 3mpm, 2.1mpm, 1.7mpm

  • amp draw = 80A, 170A, 210A, 310A, 360A

  • layer of cable = 1, 2, 3, 4

  • pull per layer = 5443kg, 4490kg, 3765kg, 3175kg

  • cap per layer = 6m, 13m, 22m, 25m

  • mounting dimensions heart to heart = 255 x 115mm

Product Dimensions:
Product Length 545 mm
Product Width 160 mm
Product Height 194 mm
Product Weight 40.0 Kg
Package Dimensions:
Package Length 620 mm
Package Width 360 mm
Package Height 260 mm
Package Weight 43.00 Kg
