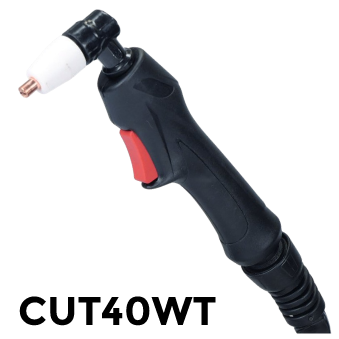

Plasma torch CUT40 / plasma cutting torch / cutting torch
This Soldatech plasma cutting torch has an ergonomic handle and a ball joint at the bottom of the torch. This, in combination with the optimal position of the switch, ensures great ease of use in all cutting positions.
The connection is made via a union nut with a connection thread (M16x1.5 mm screw connection). The switching contact for the ignition is established via a 2-pin connector plug.
All consumables for this torch are also available.
Suitable for several plasma cutters being sold in Europe incl.: Parkside PPS40B2, AVALON40, Stamos s-cutter 50.1 & S-cutter 40.
Plasmacutter torch CUT40 comes standard with:
- 3x CUT40WTT TIP,
- 3x CUT40WTC Ceramic cap,
- 3x CUT40WTTH Electrode,
- 1x CUT40WTCR Ceramic Ring.
Specifications:
- Length = 3 meters
- Connection = euro connector threaded joint M16 x 1.5mm
- Duty cycle = 50%
- Current = 40A
- Air pressure = 3.5 - 6.5 bar
- Air consumption = 80L/min
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 3,000 mm |
| Product Width | 38 mm |
| Product Height | 70 mm |
| Product Weight | 1.0 Kg |
| Package Dimensions: | |
| Package Length | 250 mm |
| Package Width | 200 mm |
| Package Height | 60 mm |
| Package Weight | 1.16 Kg |
