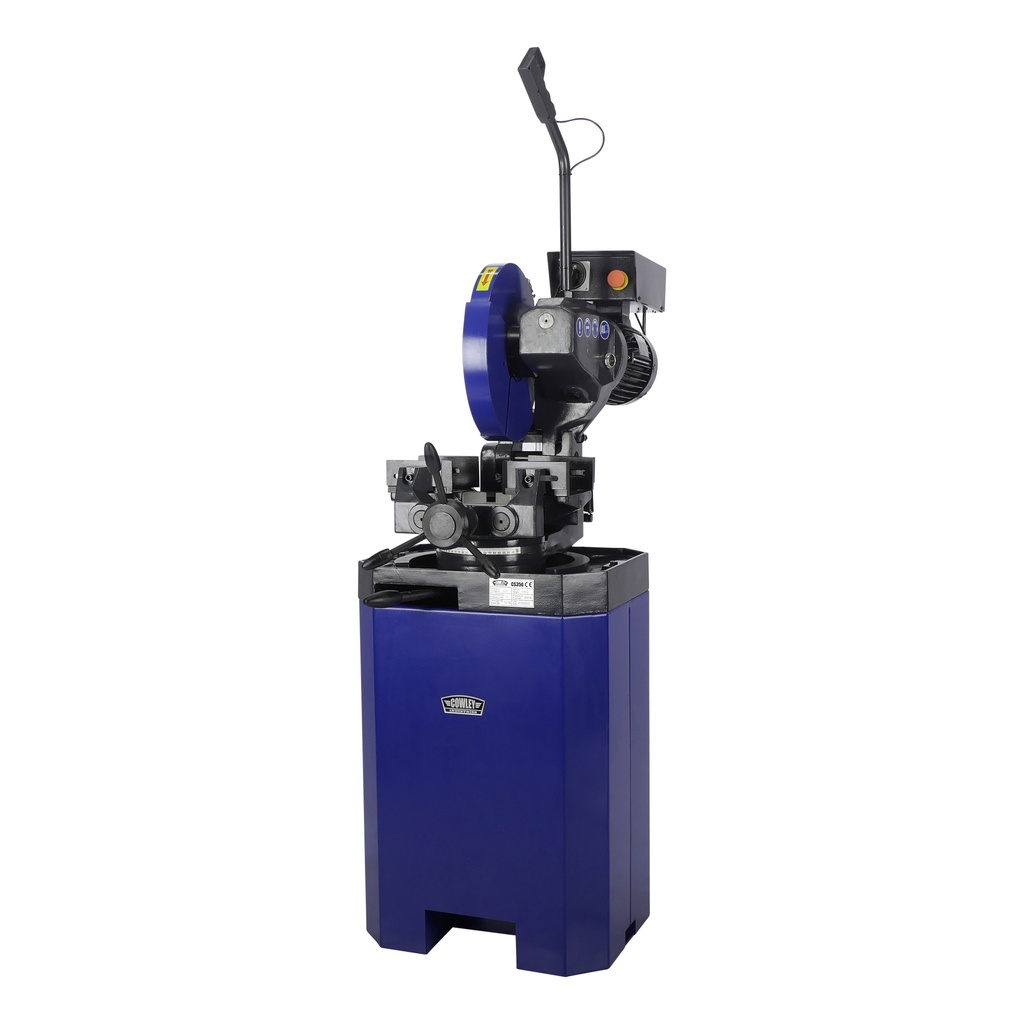

Metal circular saw / sawing machine
This Cowley circular saw is ideal for cutting and shortening round or rectangular metal materials. This robust model features the following useful features
Double clamp
Angle of the clamp can be adjusted
Rotatable head 45 degrees
Material stop
2 speeds
The machines comes with a saw blade of 350mm, a base of 470 x 580 x 770mm and a cooling unit.
Specifications:
saw blade diameter = 350mm
axle diameter = 32mm
cutting capacity circular 90 degrees = 120mm
cutting capacity rectangular 90 degrees = 140 x 100mm
cutting capacity circular 45 degrees = 105mm
cutting capacity rectangular 45 degrees = 100 x 100mm
blade speed 1 = 18rpm
blade speed 2 = 36rpm
max. opening clamp = 145mm
motor power = 1,3kW
voltage = 400V
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 770 mm |
| Product Width | 580 mm |
| Product Height | 470 mm |
| Product Weight | 190.0 Kg |
| Package Dimensions: | |
| Package Length | 980 mm |
| Package Width | 620 mm |
| Package Height | 950 mm |
| Package Weight | 250.00 Kg |
