Air compressor / silenced compressor / silent compressor

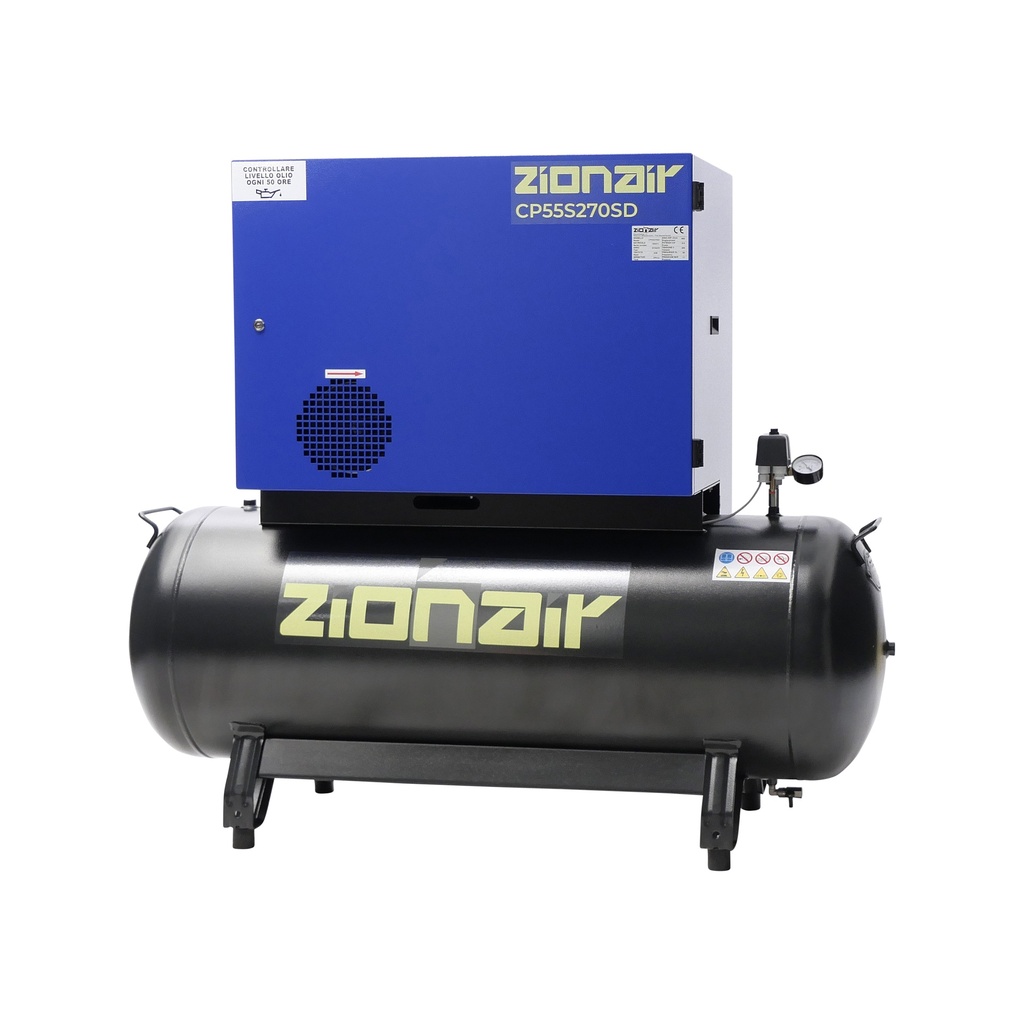

This ZionAir silenced compressor is produced in Italy under European quality standards and is equipped with a K30 Chinook-Shamal pump. This makes the compressor energy efficient, inexpensive to maintain, easy to use and guarantees maximum performance with minimum noise level.
Star-delta switch to start the heavy engine step by step. The separate star-delta switch box must be mounted on the wall. There is a 1.4m cable between the compressor and switch box.
The compressor is also equipped with a "fan on demand". These built-in fans turn on automatically when the compressor temperature rises.
Technical specifications:
power = 5.5kW
voltage = 400V
max. pump pressure = 11 bar
max. tank pressure = 11 bar
preset cut-off pressure = 10 bar
start-up pressure = 8 bar
suction volume = 850L/min
air output = 730L/min
tank volume = 270L
type pump = K30 Chinook - Shamal
speed = 1150rpm
duty cycle = 50%
noise level = 80dB (@ 1m)
no plug, 1.7m 5x2.5mm² cable
connection = 3/4" NPT internal thread (side of tank)
| Product Dimensions: | |
|---|---|
| Product Length | 1,550 mm |
| Product Width | 600 mm |
| Product Height | 1,280 mm |
| Product Weight | 188.0 Kg |
| Package Dimensions: | |
| Package Length | 1,550 mm |
| Package Width | 800 mm |
| Package Height | 1,400 mm |
| Package Weight | 225.00 Kg |
