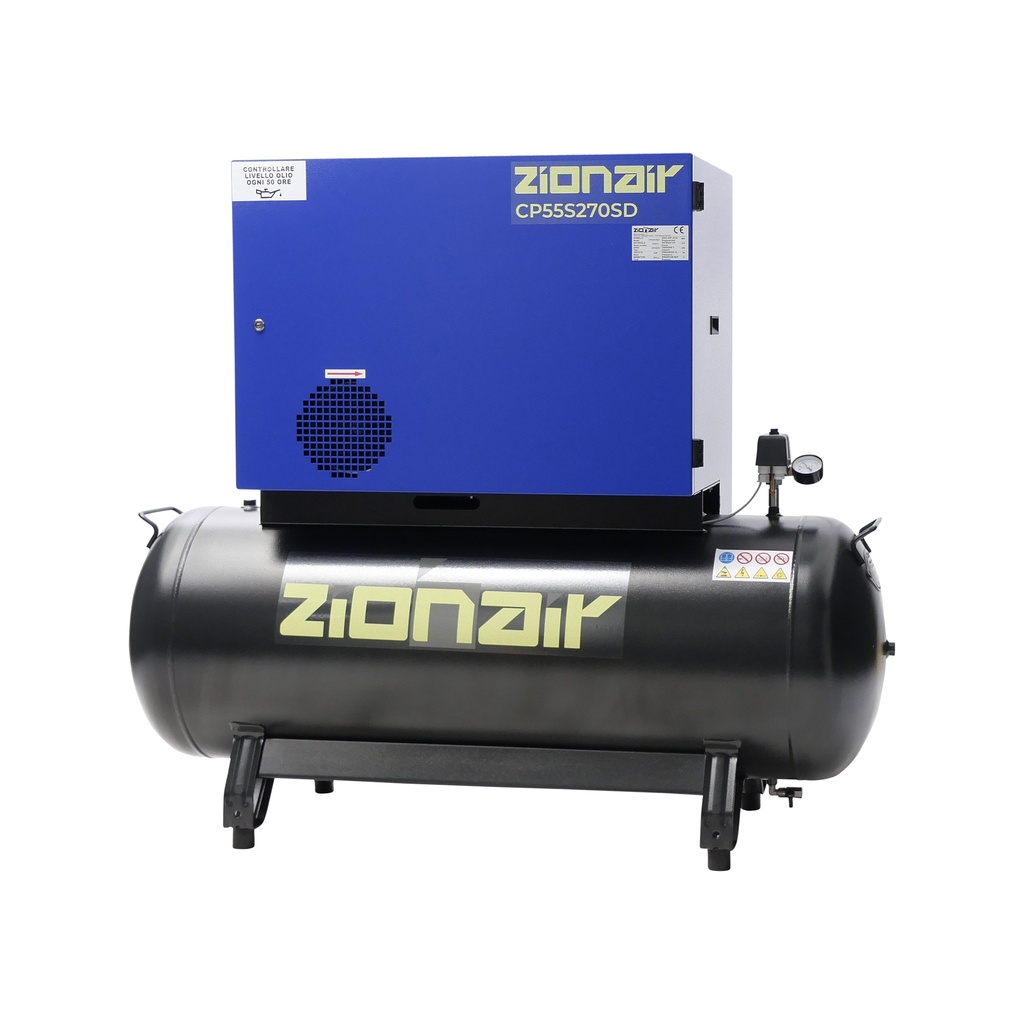

Compressor silent 5,5kW 400V 11 bar 270L tank star-delta

[CP55S270SD] Compressor silent 5,5kW 400V 11 bar 270L tank star-delta

Compressors and accessories / Air compressors / Air compressors silent Brand: ZionAir ZionAir

Product Code: CP55S270SD

EAN: 8720028094875

Availability: Available

https://www.valkenpower.com/web/image/product.template/61238/image_1920?unique=886aa11

€ 3,055.25 3055.25 EUR € 3,055.25

€ 2,525.00

Not Available For Sale

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Air compressor / silenced compressor / silent compressor

This ZionAir silenced compressor is produced in Italy under European quality standards and is equipped with a K30 Chinook-Shamal pump. This makes the compressor energy efficient, inexpensive to maintain, easy to use and guarantees maximum performance with minimum noise level.

Star-delta switch to start the heavy engine step by step. The separate star-delta switch box must be mounted on the wall. There is a 1.4m cable between the compressor and switch box.

The compressor is also equipped with a "fan on demand". These built-in fans turn on automatically when the compressor temperature rises.

Technical specifications:

  • power = 5.5kW

  • voltage = 400V

  • max. pump pressure = 11 bar

  • max. tank pressure = 11 bar

  • preset cut-off pressure = 10 bar

  • start-up pressure = 8 bar

  • suction volume = 850L/min

  • air output = 730L/min

  • tank volume = 270L

  • type pump = K30 Chinook - Shamal

  • speed = 1150rpm

  • duty cycle = 50%

  • noise level = 80dB (@ 1m)

  • no plug, 1.7m 5x2.5mm² cable

  • connection = 3/4" NPT internal thread (side of tank)

Product Dimensions:
Product Length 1,550 mm
Product Width 600 mm
Product Height 1,280 mm
Product Weight 188.0 Kg
Package Dimensions:
Package Length 1,550 mm
Package Width 800 mm
Package Height 1,400 mm
Package Weight 225.00 Kg

  • Made in Italy

  • Star-delta

  • Fan on demand

  • Very low noise level

  • Low speed
