Beam clamp
This beam clamp is designed to make a safe connection from a beam to a for example chain hoist.
- capacity = 3 ton / 3000kg
- width = 80 - 320mm

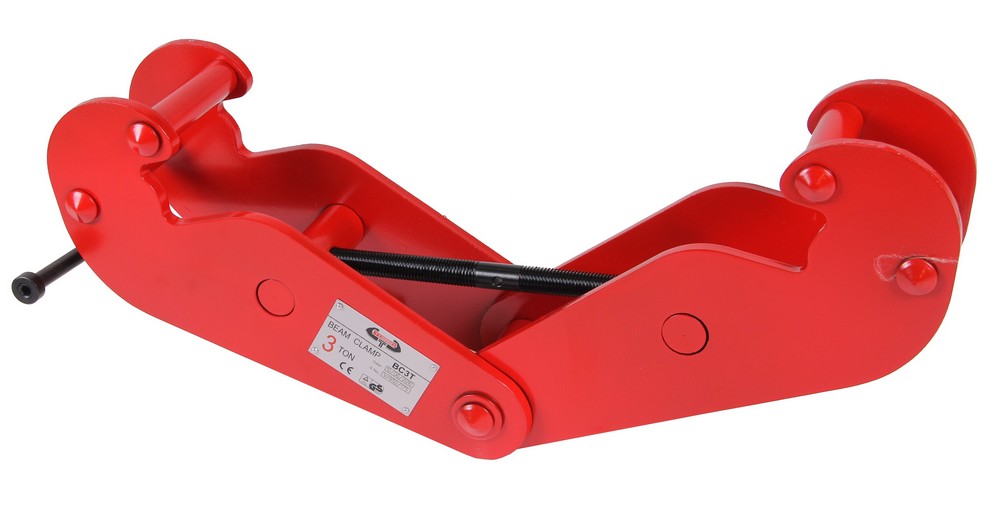

Dimensions corresponding to the image:
- max. A = 354mm
- min. / max. B = 235 / 490mm
- C = 103mm
- D = 8mm
- E = 260mm
- min. / max. F = 140 / 225mm
- G = 45mm
- H = 24mm
