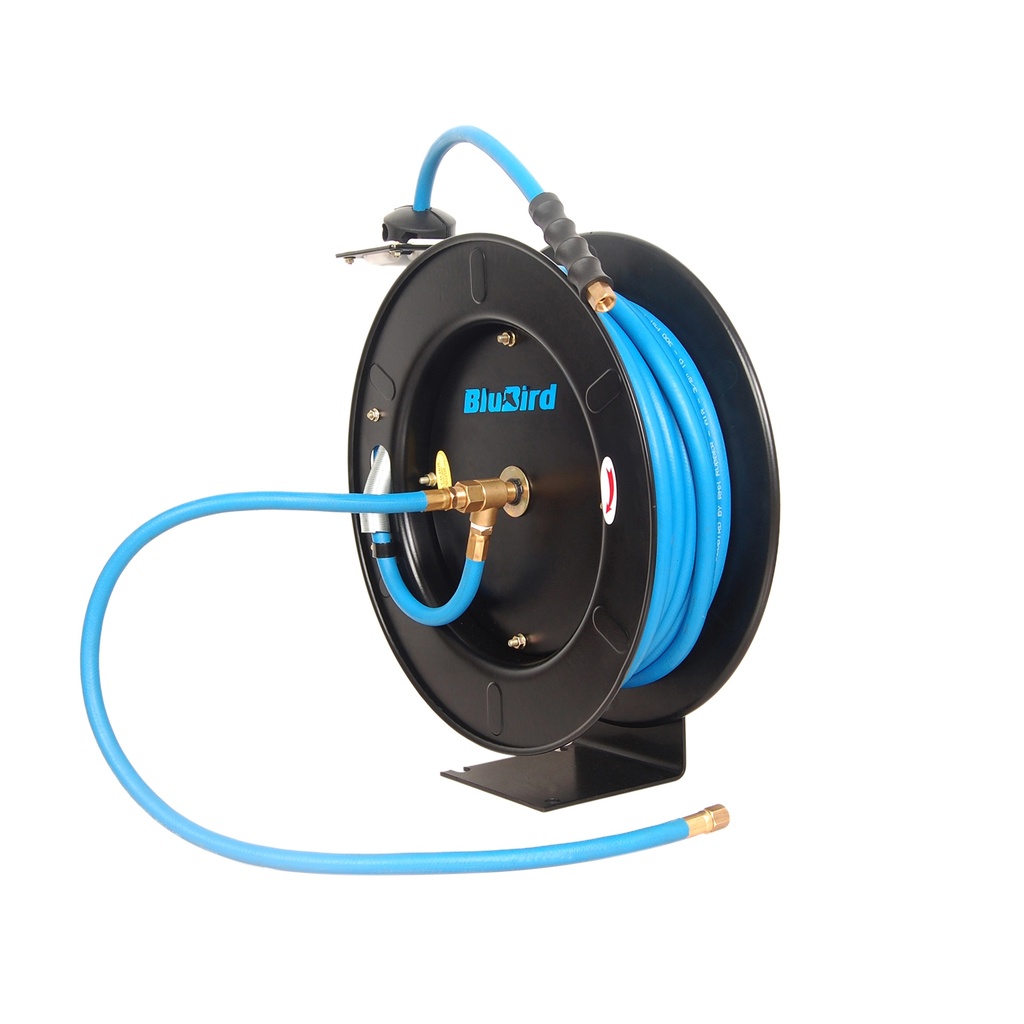

Blubird Rubber retractable air hose reel single arm 10mm x 10mtr

[BBR1010M] Blubird Rubber retractable air hose reel single arm 10mm x 10mtr

Shop equipment / Reels / Air hose reels Brand: Blubird Blubird

Product Code: BBR1010M

EAN: 8720028109135

Availability: Available

https://www.valkenpower.com/web/image/product.template/64084/image_1920?unique=59268c0

€ 125.00 125.0 EUR € 125.00

€ 125.00

Not Available For Sale

  • Inner hose diameter
  • Fittings
  • Burst pressure min.
  • Temperature range
  • Working pressure max.
  • Safety factor
  • Braiding
  • Material
  • Hose length
  • Lead-in hose

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

The Blubird Air Hose Reel is produced with features that guarantee optimum performance for automotive and industrial aplications. Crafted with precision, the corrosion-resistant powder-coated steel frame ensures durability and longevity. Its single adjustable guide arm and L-shaped base with groove reinforcement provide rock-solid stability and support, making it a reliable tool for any project. Paired with the Blubird Air Hose, this dynamic duo delivers exceptional performance and versatility.
Air hose reel features:

  • Multi-position 12-point ratchet spring system
  • Brass swivel joints in hose inlet connection
  • Reel stopper and 4 non-snag roller
  • Versatile mounting option

Air Hose features:

  • 40% lighter than standard rubber hoses
  • 20 Bar working pressure
  • Solid brass fittings
  • 4:1 safety factor
  • Extreme weather resistant
  • 4 finger grip bend restrictor
Product Dimensions:
Product Length 150 mm
Product Width 360 mm
Product Height 400 mm
Product Weight 9.6 Kg
Package Dimensions:
Package Length 210 mm
Package Width 410 mm
Package Height 430 mm
Package Weight 10.40 Kg

  • Multi-position 12-point ratchet spring system
  • Brass swivel joints in hose inlet connection
  • Reel stopper and 4 non-snag roller
  • Versatile mounting option
  • 40% lighter than standard rubber hoses

Specifications

Inner hose diameter 10 mm
Fittings outlet 1/4" M-BSP & reel inlet 1/4" M-BSP
Burst pressure min. 82 Bar
Temperature range -45°C to +87°C
Working pressure max. 20 Bar
Safety factor 4:1
Braiding Polyester
Material Rubber
Hose length 10 m
Lead-in hose 1 m
